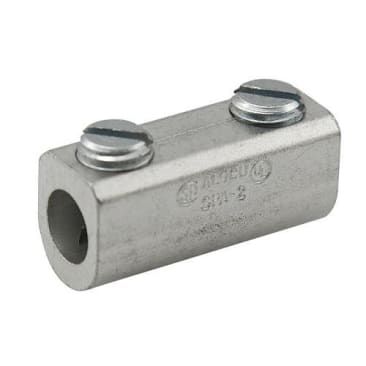

ILSCO SPA-2 ALUMINUM SPLICER/REDUCER 2-4 GAUGE
MFR Part #: SPA-2
SKU #: 1224352
Brand: ILSCO®
UPC: 783669857009
ILSCO® ClearChoice® SPA-2 Type SPA Dual Rated Splicer/Reducer, 14 to 2 AWG Aluminum/Copper Conductor, 2 Screws, Aluminum
For use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
CSA File No. LR29601 | UL 486 A-B File No. E6207 | UL 453G File No. E6207 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Splicer/Reducer, Type SPA Dual Rated, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 2 Screws, 2000 VAC, Specifications: Slotted Hex, 3/8 in Dia Screw, 90 deg C, Aluminum, Electro-Plated Tin, 1.1875 in L x 0.4531 in W x 0.5625 in H Dimensions
Conductor Size:
14 to 2 AWG
Conductor Type:
Aluminum/Copper
Country Of Origin:
Mexico
Dimensions:
1.1875 in L x 0.4531 in W x 0.5625 in H
Finish:
Electro-Plated Tin
Material:
Aluminum
Number of Screws:
2
Specifications:
Slotted Hex, 3/8 in Dia Screw
Temperature Rating:
90 deg C
Type:
Type SPA Dual Rated
Voltage Rating:
2000 VAC
- Manufactured from high strength 6061-T6 aluminum alloy
- Rounded bottoms facilitates taping
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Dual-rated for aluminum and copper conductor
- 350 to 2 have rounded bottoms and 1000 to 500 have flat bottoms
Product Details
ILSCO® ClearChoice® Splicer/Reducer, Type SPA Dual Rated, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 2 Screws, 2000 VAC, Specifications: Slotted Hex, 3/8 in Dia Screw, 90 deg C, Aluminum, Electro-Plated Tin, 1.1875 in L x 0.4531 in W x 0.5625 in H Dimensions
Attributes
Conductor Size: 14 to 2 AWG
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 1.1875 in L x 0.4531 in W x 0.5625 in H
Finish: Electro-Plated Tin
Material: Aluminum
Number of Screws: 2
Specifications: Slotted Hex, 3/8 in Dia Screw
Temperature Rating: 90 deg C
Type: Type SPA Dual Rated
Voltage Rating: 2000 VAC
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Rounded bottoms facilitates taping
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Dual-rated for aluminum and copper conductor
- 350 to 2 have rounded bottoms and 1000 to 500 have flat bottoms
