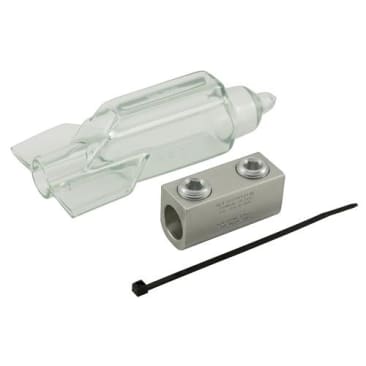

ILSCO SPAR-250 250MCM-#6 INSULATED SPLICER-REDUCER CONN
MFR Part #: SPAR-250
SKU #: 1011296
Brand: ILSCO®
UPC: 78366985728
ILSCO® RocketSplice® SPAR-250 Type SPAR Dual Rated Insulated Splicer/Reducer, 6 AWG to 250 kcmil Aluminum/Copper Conductor
CSA File No. LR29601 | UL 486A-B | UL 453G File No. E6207 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
ILSCO® RocketSplice® Splicer/Reducer, Type SPAR Dual Rated Insulated, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 600 VAC, Specifications: 5/16 in Hex, -45 to 90 deg C, Tin Plated, 5.67 in L x 2.406 in W x 1.285 in H Dimensions
Conductor Size:
6 AWG to 250 kcmil
Conductor Type:
Aluminum/Copper
Country Of Origin:
Mexico
Dimensions:
5.67 in L x 2.406 in W x 1.285 in H
Finish:
Tin Plated
Specifications:
5/16 in Hex
Temperature Rating:
-45 to 90 deg C
Type:
Type SPAR Dual Rated Insulated
Voltage Rating:
600 VAC
- Range adjustable trim to fit tip ensures proper fit of cover to cable
- Unique shape and compact 'rocket' design provides ease of installation, versatility and serviceability of connections made in tight spaces
- Connect or cover and cable tie packaged together provides ease of ordering
- No taping and allows visual inspection of splice
- Ensures reliability
- ClearSplice™ has transparent flexible insulating cover to insulate yet allow visual inspection
- Captive pressure screws in 'quick-start' position
- Dual-rated for aluminum and copper conductor
Product Details
ILSCO® RocketSplice® Splicer/Reducer, Type SPAR Dual Rated Insulated, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 600 VAC, Specifications: 5/16 in Hex, -45 to 90 deg C, Tin Plated, 5.67 in L x 2.406 in W x 1.285 in H Dimensions
Attributes
Conductor Size: 6 AWG to 250 kcmil
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 5.67 in L x 2.406 in W x 1.285 in H
Finish: Tin Plated
Specifications: 5/16 in Hex
Temperature Rating: -45 to 90 deg C
Type: Type SPAR Dual Rated Insulated
Voltage Rating: 600 VAC
Features
- Range adjustable trim to fit tip ensures proper fit of cover to cable
- Unique shape and compact 'rocket' design provides ease of installation, versatility and serviceability of connections made in tight spaces
- Connect or cover and cable tie packaged together provides ease of ordering
- No taping and allows visual inspection of splice
- Ensures reliability
- ClearSplice™ has transparent flexible insulating cover to insulate yet allow visual inspection
- Captive pressure screws in 'quick-start' position
- Dual-rated for aluminum and copper conductor
