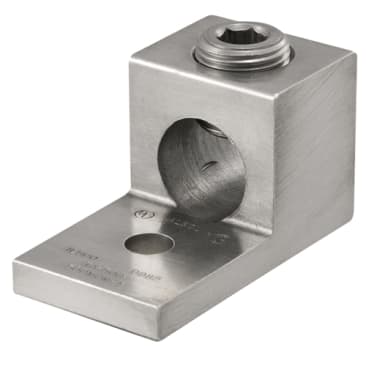

ILSCO TA-500-I COPPER/ALUMINUM LUG 500-4
MFR Part #: TA-500-I
SKU #: 0732090
Brand: ILSCO®
UPC: 783669715521
ILSCO® TA-500-I Type TA Mechanical Terminal Lug, 4 AWG to 500 kcmil Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
UL Listed | CSA Certified
Product Details
Attributes
Features
ILSCO® Mechanical Terminal Lug, Type TA, Stranded Copper Conductor, 4 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-19/32 in Tongue, Straight Tongue, Specifications: 0.406 in Mounting Hole Dia, 90 deg C, Aluminum, Tin Plated, 2.375 in L x 1.2 in H Dimensions
Conductor Size:
4 AWG to 500 kcmil
Conductor Type:
Stranded Copper
Dimensions:
2.375 in L x 1.2 in H
Finish:
Tin Plated
Material:
Aluminum
Number of Bolt Holes:
1
Specifications:
0.406 in Mounting Hole Dia
Stud Size:
3/8 in
Temperature Rating:
90 deg C
Tongue Size:
1-19/32 in
Tongue Type:
Straight
Type:
Type TA
- Hexagonal screw
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- Provides ease of installation
- Ensures reliability for copper or aluminum conductors
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro-tin plated
- Chamfered wire entry
Product Details
ILSCO® Mechanical Terminal Lug, Type TA, Stranded Copper Conductor, 4 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-19/32 in Tongue, Straight Tongue, Specifications: 0.406 in Mounting Hole Dia, 90 deg C, Aluminum, Tin Plated, 2.375 in L x 1.2 in H Dimensions
Attributes
Conductor Size: 4 AWG to 500 kcmil
Conductor Type: Stranded Copper
Dimensions: 2.375 in L x 1.2 in H
Finish: Tin Plated
Material: Aluminum
Number of Bolt Holes: 1
Specifications: 0.406 in Mounting Hole Dia
Stud Size: 3/8 in
Temperature Rating: 90 deg C
Tongue Size: 1-19/32 in
Tongue Type: Straight
Type: Type TA
Features
- Hexagonal screw
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- Provides ease of installation
- Ensures reliability for copper or aluminum conductors
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro-tin plated
- Chamfered wire entry
