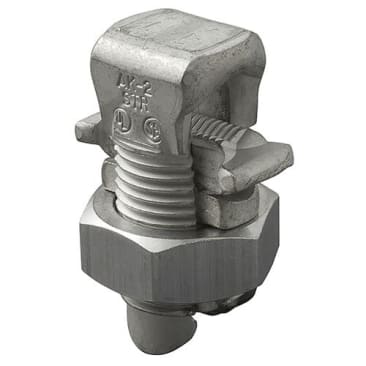

ILSCO AK-2 ALUMINUM/COPPER SPLIT BOLT 2-6AWG COMPACT
MFR Part #: AK-2
SKU #: 1093197
Brand: ILSCO®
UPC: 78366900832
ILSCO® ClearChoice® AK-2 Type AK Dual Rated Split Bolt Connector, 6 to 2 AWG, 8 to 2 AWG Solid/Stranded Aluminum Conductor, 0.69 x 1.58 in, Aluminum Alloy
For use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques, tap connector and splice connector
CSA 72632 | UL 486A/B | UL 670B File No. E9998 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Split Bolt Connector, Type AK Dual Rated, Solid/Stranded Aluminum Conductor, 6 to 2 AWG, 8 to 2 AWG Conductor, 0.69 x 1.58 in Bolt, 2000 VAC, Specifications: 0.94 in Hex Nut, 275 in-lb Recommended Torque, 90 deg C, Aluminum Alloy, Electro-Plated Tin, 1.58 in H x 94 in W Dimensions
Bolt Size:
0.69 x 1.58 in
Conductor Size:
6 to 2 AWG, 8 to 2 AWG
Conductor Type:
Solid/Stranded Aluminum
Country Of Origin:
US
Dimensions:
1.58 in H x 94 in W
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Specifications:
0.94 in Hex Nut, 275 in-lb Recommended Torque
Temperature Rating:
90 deg C
Type:
Type AK Dual Rated
Voltage Rating:
2000 VAC
- Manufactured from heat treated aluminum alloy provides maximum conductivity and strength for copper and aluminum conductors
- Electro tin plated provides low contact resistance
- Spacer bar separates dissimilar metals which prevents galvanic corrosion
- Triangular edges bite into the conductor to break through surface oxides which eliminates wire brushing
- Application versatility
- Hex head provides ease of installation with standard wrenches
- Provides maximum conductivity and strength for copper and aluminum conductors
- Proper high voltage spacing and insulation techniques must be used
- Bite into the conductor to break through surface oxides which eliminates wire brushing
- Provides low contact resistance
- Separates dissimilar metals which prevents galvanic corrosion
- Provides ease of installation with standard wrenches
- Compact conductor range
Product Details
ILSCO® ClearChoice® Split Bolt Connector, Type AK Dual Rated, Solid/Stranded Aluminum Conductor, 6 to 2 AWG, 8 to 2 AWG Conductor, 0.69 x 1.58 in Bolt, 2000 VAC, Specifications: 0.94 in Hex Nut, 275 in-lb Recommended Torque, 90 deg C, Aluminum Alloy, Electro-Plated Tin, 1.58 in H x 94 in W Dimensions
Attributes
Bolt Size: 0.69 x 1.58 in
Conductor Size: 6 to 2 AWG, 8 to 2 AWG
Conductor Type: Solid/Stranded Aluminum
Country Of Origin: US
Dimensions: 1.58 in H x 94 in W
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Specifications: 0.94 in Hex Nut, 275 in-lb Recommended Torque
Temperature Rating: 90 deg C
Type: Type AK Dual Rated
Voltage Rating: 2000 VAC
Features
- Manufactured from heat treated aluminum alloy provides maximum conductivity and strength for copper and aluminum conductors
- Electro tin plated provides low contact resistance
- Spacer bar separates dissimilar metals which prevents galvanic corrosion
- Triangular edges bite into the conductor to break through surface oxides which eliminates wire brushing
- Application versatility
- Hex head provides ease of installation with standard wrenches
- Provides maximum conductivity and strength for copper and aluminum conductors
- Proper high voltage spacing and insulation techniques must be used
- Bite into the conductor to break through surface oxides which eliminates wire brushing
- Provides low contact resistance
- Separates dissimilar metals which prevents galvanic corrosion
- Provides ease of installation with standard wrenches
- Compact conductor range
