EFF EFF123-03-LF 1/2 X 1/2PEX X 3/8OD MINI TEE VLV
MFR Part #:Â EFF123-03-LF
SKU #:Â 1119468
Brand:Â EFF
UPC:Â 400007640542

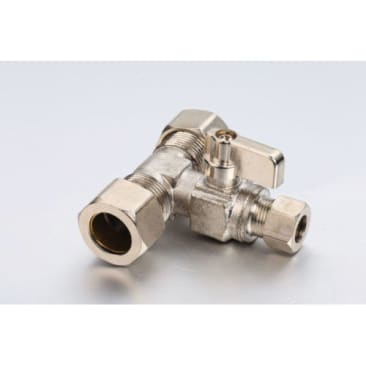

Eastern Foundry and Fitting EFF123 Series EFF123-03-LF Tee Mini-Ball Valve, 1/2 x 1/2 x 3/8 in, Brass, 400 psi
10 Year
ASME A112.18.1-18 Specified|CSA B125.1 Certified|NSF/ANSI 61, 372 Certified
Product Details
Attributes
Features
Resources
Eastern Foundry and Fitting Tee Mini-Ball Valve, EFF123 Series, 1/2 x 1/2 x 3/8 in Nominal, PEX x PEX x OD Compression Connection, 400 psi, 2.008 in Inlet to Outlet Length, Material Standard: ASTM 1807, ASTM B124 C46400, Brass Body, PTFE Seat, Brass Stem, EPDM Seal, Zinc Alloy Handle, Brass Ball, Lead-Free, 250 deg F, 1.89 in H
Ball Material:
Brass
Body Material:
Brass
Connection Type:
PEX x PEX x OD Compression
Dimensions:
1.89 in H
Handle Material:
Zinc Alloy
Inlet to Outlet Length:
2.008 in
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
ASTM 1807, ASTM B124 C46400
Nominal Size:
1/2 x 1/2 x 3/8 in
Operator Type:
Lever Handle
Pressure Rating:
400 psi
Seal Material:
EPDM
Seat Material:
PTFE
Series:
EFF123 Series
Stem Material:
Brass
Temperature Rating:
250 deg F
- Dezincification and stress corrosion-resistant
- Quarter-turn operation
- Double O-ring seal stem
Product Details
Eastern Foundry and Fitting Tee Mini-Ball Valve, EFF123 Series, 1/2 x 1/2 x 3/8 in Nominal, PEX x PEX x OD Compression Connection, 400 psi, 2.008 in Inlet to Outlet Length, Material Standard: ASTM 1807, ASTM B124 C46400, Brass Body, PTFE Seat, Brass Stem, EPDM Seal, Zinc Alloy Handle, Brass Ball, Lead-Free, 250 deg F, 1.89 in H
Attributes
Ball Material:Â Brass
Body Material:Â Brass
Connection Type:Â PEX x PEX x OD Compression
Dimensions:Â 1.89 in H
Handle Material:Â Zinc Alloy
Inlet to Outlet Length:Â 2.008 in
Lead-Free/Contains Lead:Â Lead-Free
Material Standard:Â ASTM 1807, ASTM B124 C46400
Nominal Size:Â 1/2 x 1/2 x 3/8 in
Operator Type:Â Lever Handle
Pressure Rating:Â 400 psi
Seal Material:Â EPDM
Seat Material:Â PTFE
Series:Â EFF123 Series
Stem Material:Â Brass
Temperature Rating:Â 250 deg F
Features
- Dezincification and stress corrosion-resistant
- Quarter-turn operation
- Double O-ring seal stem
