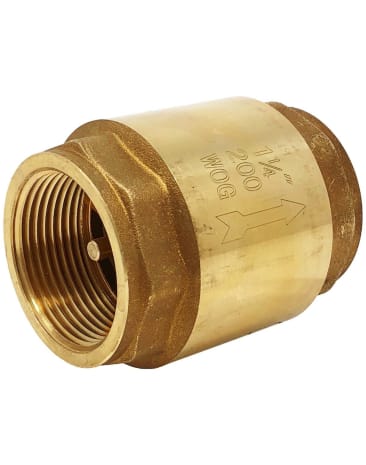

KVC NL-161-0125 1-1/4 IP 200 WOG LEAD FREE BRASS SPRING CHECK VALVE
MFR Part #:Â NL-161T-0125
SKU #:Â 1270849
Brand:Â KVC
UPC:Â 400051322661
KVC NL-161-0125 1-1/4 IP 200 WOG LF BRS SPRING CHECK VLV
Product Details
Attributes
Features
Resources
KVC Brass Check Valve, NL-161 Series, NPT Connection, Full Port, 1 1/4 in Nominal, фd 33.00mm, L 72.50mm, фD 58.50mm, H 53.50mm, ASTM B283 C46400 Body, Lead Free Brass Bonnet, Lead Free Brass Core, EPDM Seat, Stainless Steel Spring, Max Working Pressure: 200 PSI, Working Temperature: 32°F - 212°F
Height:
53.5 mm
Length:
72.5 mm
Maximum Working Pressure:
200 PSI
Maximum Working Temperature:
212 F
Minimum Working Temperature:
32 F
Size:
1 1/4 in
Ń„d:
33 mm, 58.5 mm
- Dezincification Resistant (DZR) Lead-Free Brass Material
- Thread Conform ANSI B1.20.1
- Screw in Brass
- Seals In EPDM-Rubber
- Spring In Stainless Steel AISI 304
- Forged Brass Body
Product Details
KVC Brass Check Valve, NL-161 Series, NPT Connection, Full Port, 1 1/4 in Nominal, фd 33.00mm, L 72.50mm, фD 58.50mm, H 53.50mm, ASTM B283 C46400 Body, Lead Free Brass Bonnet, Lead Free Brass Core, EPDM Seat, Stainless Steel Spring, Max Working Pressure: 200 PSI, Working Temperature: 32°F - 212°F
Attributes
Height:Â 53.5 mm
Length:Â 72.5 mm
Maximum Working Pressure:Â 200 PSI
Maximum Working Temperature:Â 212 F
Minimum Working Temperature:Â 32 F
Size:Â 1 1/4 in
Ń„d:Â 33 mm, 58.5 mm
Features
- Dezincification Resistant (DZR) Lead-Free Brass Material
- Thread Conform ANSI B1.20.1
- Screw in Brass
- Seals In EPDM-Rubber
- Spring In Stainless Steel AISI 304
- Forged Brass Body
