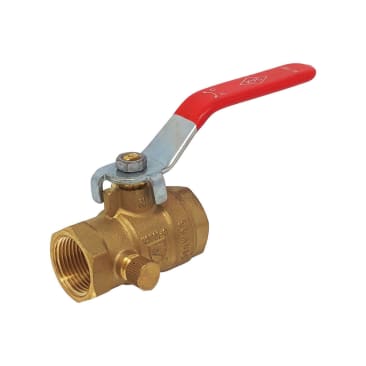

KVC NL-110T075 Image 1

KVC NL-110T075 3/4 NPT BRS BALL VALVE W/DRN 600WOG

MFR Part #: NL-110T075
SKU #: 1114640
Brand: KVC
UPC: 400007366527
KVC NL-110T Series NL-110T075 Ball Valve With Drain, 3/4 in, NPT, Brass, 600 psi
ANSI B1.20.1 Specified | cCSAus Certified | cUPC Certified | NSF/ANSI-61, NSF/ANSI-372, IGC-157 Certified

KVC Ball Valve With Drain, NL-110T Series, 3/4 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.56 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Lever Handle Operator, 29.76 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Lead-Free, -20 to 300 deg F

Product Details

KVC Ball Valve With Drain, NL-110T Series, 3/4 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.56 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Lever Handle Operator, 29.76 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Lead-Free, -20 to 300 deg F

Attributes

Ball Material: Stainless Steel
Body Material: Brass
Connection Type: NPT
Inlet to Outlet Length: 2.56 in
Lead-Free/Contains Lead: Lead-Free
Media: Gas, Oil, Steam, Water
Nominal Size: 3/4 in
Operator Type: Lever Handle
Packing Material: PTFE
Port Type: Full
Pressure Rating: 600 psi
Seal Material: NBR
Seat Material: PTFE
Stem Material: Brass

Features

  • Dezincification-resistant (DZR) lead-free brass material
  • Blowout-proof stem design
  • Packing nut, O-ring and packing on the stem seal
  • Handle with vinyl grip
  • Zinc-plated ferrum lock nut, washer
  • Brass cap and packing nut
