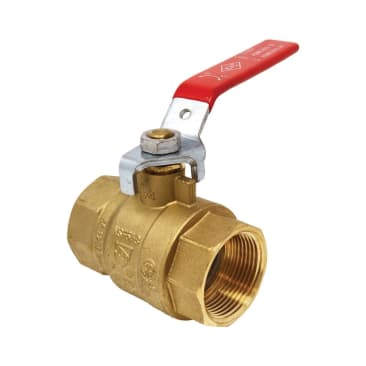

KVC NL-100T0100 1 NPT BRASS BALL VALVE LF 600 WOG
MFR Part #:Â NL-100T0100
SKU #:Â 1170882
Brand:Â KVC
UPC:Â 400008210737
KVC NL-100T Series NL-100T0100 Ball Valve, 1 in, NPT, Brass, 600 psi
ANSI B1.20.1 Specified|cCSAus Certified|cUPC Certified|ASME B16.38/CGA3.16 Specified|CSA CGA3.16 Certified|cULus Listed|FM 1140 Approved|MSS SP-110, MSS SP-25 Compliant|UL 842 (Guide YRBX, MHKZ), UL 125 (Guide YSTD, YRPV), UL 1477 (Guide YQNZ) Listed
Product Details
Attributes
Features
Resources
KVC Ball Valve, NL-100T Series, 1 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.97 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Lever Handle Operator, 51.55 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Lead-Free, -20 to 300 deg F
Ball Material:
Stainless Steel
Body Material:
Brass
Connection Type:
NPT
Flow Coefficient (Cv):
51.55 Cv
Handle Material:
Ferrum
Inlet to Outlet Length:
2.97 in
Lead-Free/Contains Lead:
Lead-Free
Media:
Gas, Oil, Steam, Water
Nominal Size:
1 in
Operator Type:
Lever Handle
Packing Material:
PTFE
Port Type:
Full
Pressure Rating:
600 psi
Seal Material:
NBR
Seat Material:
PTFE
Series:
NL-100T Series
Stem Material:
Brass
Temperature Rating:
-20 to 300 deg F
Top to Inlet Center:
2-1/4 in
- Full port for all sizes
- Blowout-proof stem design
- Each valve is individually tested
- Low operating torques
- Hard chromium-plated solid brass ball
- Fast quarter-turn for open/close operation
- (2) adjustable packing gland
- Two piece body
- Dezincification-resistant (DZR) lead-free brass material
- Packing nut, O-ring and packing on the stem seal
- Handle with vinyl grip
- Zinc-plated ferrum lock nut, washer
- Brass cap and packing nut
Product Details
KVC Ball Valve, NL-100T Series, 1 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.97 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Lever Handle Operator, 51.55 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Lead-Free, -20 to 300 deg F
Attributes
Ball Material:Â Stainless Steel
Body Material:Â Brass
Connection Type:Â NPT
Flow Coefficient (Cv):Â 51.55 Cv
Handle Material:Â Ferrum
Inlet to Outlet Length:Â 2.97 in
Lead-Free/Contains Lead:Â Lead-Free
Media:Â Gas, Oil, Steam, Water
Nominal Size:Â 1 in
Operator Type:Â Lever Handle
Packing Material:Â PTFE
Port Type:Â Full
Pressure Rating:Â 600 psi
Seal Material:Â NBR
Seat Material:Â PTFE
Series:Â NL-100T Series
Stem Material:Â Brass
Temperature Rating:Â -20 to 300 deg F
Top to Inlet Center:Â 2-1/4 in
Features
- Full port for all sizes
- Blowout-proof stem design
- Each valve is individually tested
- Low operating torques
- Hard chromium-plated solid brass ball
- Fast quarter-turn for open/close operation
- (2) adjustable packing gland
- Two piece body
- Dezincification-resistant (DZR) lead-free brass material
- Packing nut, O-ring and packing on the stem seal
- Handle with vinyl grip
- Zinc-plated ferrum lock nut, washer
- Brass cap and packing nut
