MARR 30P TWIST-ON WIRE NUT (PK100/PER EA)
MFR Part #: 30P
SKU #: 1283919
Brand: MARR
UPC: 067396008737

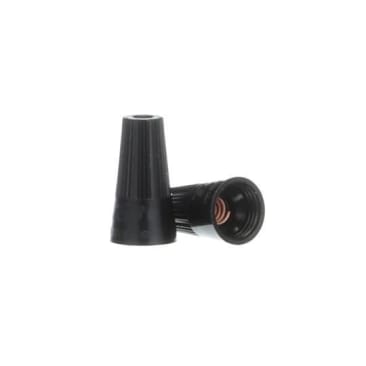

Marrette® Black™ 30P High Temperature Twist-On Wire Connector, Positive Grip Shell, Conical/Wedge Action Spring, 22 to 14 AWG Copper Wire, Thermoplastic Polymer
For high wattage lighting fixtures and signs
CSA File No. 6591|UL File No. E9809
Product Details
Attributes
Features
Resources
Marrette® Black™ Twist-On Wire Connector, High Temperature, Positive Grip, Conical/Wedge Action, Copper Wire, 22 to 14 AWG Wire, 300 VAC, 302 deg F, Thermoplastic Polymer, Black
Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.
Color:
Black
Material:
Thermoplastic Polymer
Shell Style:
Positive Grip
Spring Type:
Conical/Wedge Action
Temperature Rating:
302 deg F
Type:
High Temperature
Voltage Rating:
300 VAC
Wire Size:
22 to 14 AWG
Wire Type:
Copper
- Deep, wide throat ensures full insulation coverage
- Threaded entry helps guide large wire bundles right into the spring
- Large, finely ribbed, barrel shaped cap makes it easier to grip even when hands are greasy or damp
- Made of rugged, phenolic shell with thermoplastic polymer cap material and unique copper coated spring helps resist corrosion
- Internal round spring design multiplies the twist-on torque applied by the leverage and wedge action to firmly crush wires into a solid joint
- (1) 22 AWG, (1) 20 AWG to (3) 16 AWG wire combinations
- External cap made of rugged, phenolic material and 150 deg C rated
Product Details
Marrette® Black™ Twist-On Wire Connector, High Temperature, Positive Grip, Conical/Wedge Action, Copper Wire, 22 to 14 AWG Wire, 300 VAC, 302 deg F, Thermoplastic Polymer, Black
Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.
Attributes
Color: Black
Material: Thermoplastic Polymer
Shell Style: Positive Grip
Spring Type: Conical/Wedge Action
Temperature Rating: 302 deg F
Type: High Temperature
Voltage Rating: 300 VAC
Wire Size: 22 to 14 AWG
Wire Type: Copper
Features
- Deep, wide throat ensures full insulation coverage
- Threaded entry helps guide large wire bundles right into the spring
- Large, finely ribbed, barrel shaped cap makes it easier to grip even when hands are greasy or damp
- Made of rugged, phenolic shell with thermoplastic polymer cap material and unique copper coated spring helps resist corrosion
- Internal round spring design multiplies the twist-on torque applied by the leverage and wedge action to firmly crush wires into a solid joint
- (1) 22 AWG, (1) 20 AWG to (3) 16 AWG wire combinations
- External cap made of rugged, phenolic material and 150 deg C rated
