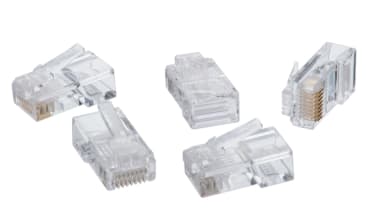

IDEAL 86-396 CAT5E RJ-45 8 POS 8 CONTACT MOD PLUG (PK100)
MFR Part #: 86-396
SKU #: 1267660
Brand: IDEAL®
UPC: 783250863969
IDEAL® 86-396 8P8C Non-Keyed Round Modular Plug, Solid Conductor, Plastic
RoHS Compliant | UL Listed
Product Details
Attributes
Features
Resources
IDEAL® Modular Plug, 8P8C Non-Keyed Round, Cat 5e/Cat 3 Cable, Solid Conductor, 24 AWG Conductor, Crimp, Clear, Plastic, 7 in L x 4 in W x 2 in H
Cable Type:
Cat 5e/Cat 3
Color:
Clear
Conductor Size:
24 AWG
Conductor Type:
Solid
Country Of Origin:
Taiwan
Dimensions:
7 in L x 4 in W x 2 in H
Material:
Plastic
Termination Type:
Crimp
Type:
8P8C Non-Keyed Round
- Cat 5e plugs are plated with 50 u-in of gold for superior resistance to corrosion and increased life cycle mating with modular jacks
- Smooth polished contact surfaces for lower contact resistance with jack pins
- Plugs work with 24 AWG solid or stranded conductors and round or flat cables
- Plugs are capable of supporting the latest EIA/TIA cable system performance categories when installed in compliance with appropriate EIA/TIA standards and methods
- All Cat 5e RJ45 and RJ11/12 plugs are compatible with the 30-696, 30-496, 33-700 and 33-396 crimp tools, also compatible with the Crimpmaster 30-522 (RJ45)
- For Cat6 connectors
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Designed to work seamlessly with IDEAL Telemaster crimping tools
Product Details
IDEAL® Modular Plug, 8P8C Non-Keyed Round, Cat 5e/Cat 3 Cable, Solid Conductor, 24 AWG Conductor, Crimp, Clear, Plastic, 7 in L x 4 in W x 2 in H
Attributes
Cable Type: Cat 5e/Cat 3
Color: Clear
Conductor Size: 24 AWG
Conductor Type: Solid
Country Of Origin: Taiwan
Dimensions: 7 in L x 4 in W x 2 in H
Material: Plastic
Termination Type: Crimp
Type: 8P8C Non-Keyed Round
Features
- Cat 5e plugs are plated with 50 u-in of gold for superior resistance to corrosion and increased life cycle mating with modular jacks
- Smooth polished contact surfaces for lower contact resistance with jack pins
- Plugs work with 24 AWG solid or stranded conductors and round or flat cables
- Plugs are capable of supporting the latest EIA/TIA cable system performance categories when installed in compliance with appropriate EIA/TIA standards and methods
- All Cat 5e RJ45 and RJ11/12 plugs are compatible with the 30-696, 30-496, 33-700 and 33-396 crimp tools, also compatible with the Crimpmaster 30-522 (RJ45)
- For Cat6 connectors
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Designed to work seamlessly with IDEAL Telemaster crimping tools
