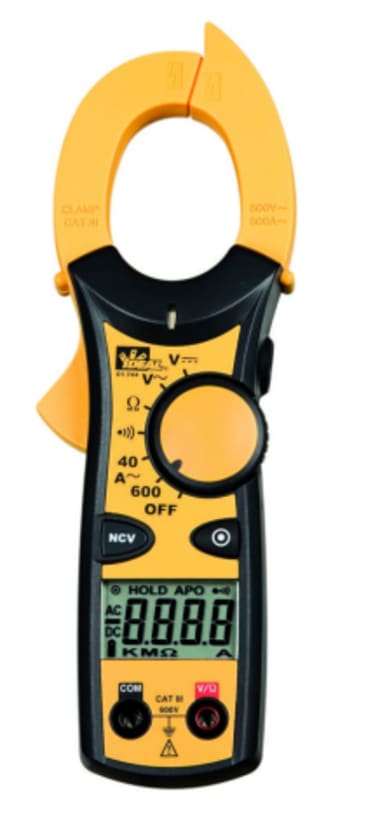

IDEAL 61-744 Image 1

IDEAL 61-744 600AAC CLAMP W/NCV

MFR Part #: 61-744
SKU #: 1039202
Brand: IDEAL®
UPC: 783250682386
IDEAL® Clamp-Pro™ 61-744 Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC, 400 Ohm to 400 MOhm, 1-1/4 in Jaw, LCD Display
(2) 1.5 V AAA Batteries, Operating Instructions, Carrying Case and Test Leads
RoHS Compliant | UL 61010 | CE Certified

IDEAL® Clamp-Pro™ Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC Electrical Rating, 400 Ohm to 400 MOhm Resistance, 1-1/4 in Jaw, 4000 Count, LCD Display, 1.7/3% + 6 Digits AC Current Accuracy, 1.2% + 5 Digits, 1.5% + 5 Digits AC, 0.5% + 5 Digits DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, 1.5 VDC AAA Alkaline Battery Power Source, 32 to 122 deg F Operating, 8 in H x 2.6 in W x 1.5 in D Dimensions

Product Details

IDEAL® Clamp-Pro™ Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC Electrical Rating, 400 Ohm to 400 MOhm Resistance, 1-1/4 in Jaw, 4000 Count, LCD Display, 1.7/3% + 6 Digits AC Current Accuracy, 1.2% + 5 Digits, 1.5% + 5 Digits AC, 0.5% + 5 Digits DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, 1.5 VDC AAA Alkaline Battery Power Source, 32 to 122 deg F Operating, 8 in H x 2.6 in W x 1.5 in D Dimensions

Attributes

AC Current Accuracy1.7/3% + 6 Digits AC
Country Of OriginUS
Counts4000
Dimensions8 in H x 2.6 in W x 1.5 in D
Display TypeLCD
Electrical Ratings40/400/600 A AC, 400/600 VAC/VDC
Jaw Capacity1-1/4 in
Operating Temperature32 to 122 deg F
Power Source1.5 VDC AAA Alkaline Battery
Resistance400 Ohm to 400 MOhm
Safety RatingCAT III 600 VAC
Voltage Accuracy1.2% + 5 Digits, 1.5% + 5 Digits AC, 0.5% + 5 Digits DC

Features

  • Measures up to 600 A AC
  • Non contact voltage indicator (70 to 600 VAC)
  • Tapered jaws with hook tip
  • Auto/manual ranging
  • Data hold
  • Auto power off
  • Low battery indicator
