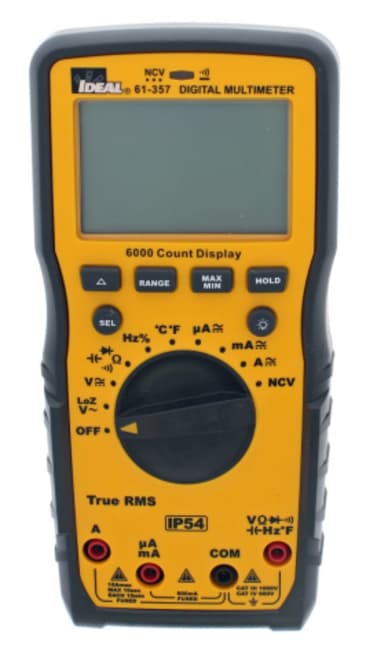

IDEAL 61-357 1000V AUTO MULTIMETER
Product Details
Attributes
Features
Resources
IDEAL® Digital Multimeter, Auto Ranging, 1000 VAC/VDC, 6000 m VAC/VDC Measuring, 1000 VAC/VDC, 10 A, 10 to 9990 Hz Frequency, 60 MOhm Resistance, Safety Rating: Cat IV 600 V, Cat III 1000 V, 6000 uF Capacitance, +/-1.5% + 5 Voltage, +/-2.5% + 5 Current Accuracy, 1 V, 0.01 A Resolution, Backlit LCD Display, (3) 1.5 V AAA Alkaline Battery, 0.5 to 0.8 V Diode Test, 7.83 in L x 3.74 in W x 2.24 in H Dimensions, -40 to 1832 deg F, IP52 Enclosure
The IDEAL® 61-357 Digital Multi Meter is a Cat IV 600 Cat III 1000V rated auto ranging true root mean square (TRMS) digital multi meter that measures up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000 VAC and DC, LoZ (low impedance) AC V, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature deg F/deg C via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40 to 600 V via a non-contact sensor in the top center of the meter. It's display features a digital readout and also an analog barograph representation and can be backlit. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 V, when continuity is detected and when the NCV senses voltage within its set range. The rubber boot has two probe storage points has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL® meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. An industrial grade over molding enhances grip and drop protection. This meter features HOLD, MIN/MAX, Relative, Range, and selectable auto power Off functions. The meter comes with 3 1.5 V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.
- Combined LCD digital readout and analog bar graph display
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
- Built-in probe tip holder and hanging strap clip allows safer, easier measurement
- Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
- Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
Product Details
IDEAL® Digital Multimeter, Auto Ranging, 1000 VAC/VDC, 6000 m VAC/VDC Measuring, 1000 VAC/VDC, 10 A, 10 to 9990 Hz Frequency, 60 MOhm Resistance, Safety Rating: Cat IV 600 V, Cat III 1000 V, 6000 uF Capacitance, +/-1.5% + 5 Voltage, +/-2.5% + 5 Current Accuracy, 1 V, 0.01 A Resolution, Backlit LCD Display, (3) 1.5 V AAA Alkaline Battery, 0.5 to 0.8 V Diode Test, 7.83 in L x 3.74 in W x 2.24 in H Dimensions, -40 to 1832 deg F, IP52 Enclosure
The IDEAL® 61-357 Digital Multi Meter is a Cat IV 600 Cat III 1000V rated auto ranging true root mean square (TRMS) digital multi meter that measures up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000 VAC and DC, LoZ (low impedance) AC V, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature deg F/deg C via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40 to 600 V via a non-contact sensor in the top center of the meter. It's display features a digital readout and also an analog barograph representation and can be backlit. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 V, when continuity is detected and when the NCV senses voltage within its set range. The rubber boot has two probe storage points has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL® meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. An industrial grade over molding enhances grip and drop protection. This meter features HOLD, MIN/MAX, Relative, Range, and selectable auto power Off functions. The meter comes with 3 1.5 V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.
Attributes
Features
- Combined LCD digital readout and analog bar graph display
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
- Built-in probe tip holder and hanging strap clip allows safer, easier measurement
- Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
- Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
