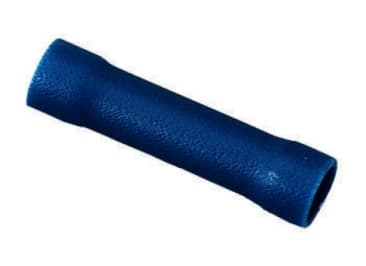

IDEAL 83-9291 Image 1

IDEAL 83-9291 16-14AWG NYLON INSULATED BUTT SPLICE (PK25)

MFR Part #: 83-9291
SKU #: 1267643
Brand: IDEAL®
UPC: 783250490455
IDEAL® 83-9291 Insulated Vinyl Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Shouldered Barrel, Brass, Blue
RoHS Compliant | CUL Listed

IDEAL® Butt Splice, Insulated Vinyl, 16 to 14 AWG Conductor, 0.986 in Length, Shouldered Barrel, 0.091 in ID Barrel, 600 VAC, 75 deg C, Brass, Blue, Tin Plated

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL® Butt Splice, Insulated Vinyl, 16 to 14 AWG Conductor, 0.986 in Length, Shouldered Barrel, 0.091 in ID Barrel, 600 VAC, 75 deg C, Brass, Blue, Tin Plated

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Size: 0.091 in ID
Barrel Type: Shouldered
Color: Blue
Conductor Size: 16 to 14 AWG
Country Of Origin: Taiwan
Finish: Tin Plated
Length: .986 in
Material: Brass
Temperature Rating: 75 deg C
Type: Insulated Vinyl
Voltage Rating: 600 VAC

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges
