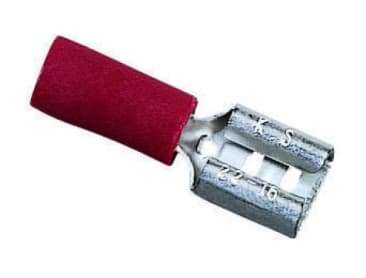

IDEAL 83-9571 Image 1

IDEAL 83-9571 22-18AWG VINYL INSULATED FEM DISCONNECT (PK25)

MFR Part #: 83-9571
SKU #: 1267647
Brand: IDEAL®
UPC: 783250490622
IDEAL® 83-9571 Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Red
RoHS Compliant | cUL Listed

IDEAL® Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.15 in Dia Insulation, 75 deg C, Brass, Red, TiN Plated, 0.819 in L x 0.26 in W Dimensions, Insulated

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL® Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.15 in Dia Insulation, 75 deg C, Brass, Red, TiN Plated, 0.819 in L x 0.26 in W Dimensions, Insulated

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Type: Shouldered
Color: Red
Conductor Size: 22 to 18 AWG
Country Of Origin: Taiwan
Dimensions: 0.819 in L x 0.26 in W
Finish: Tin Plated
Insulated: Insulated
Material: Brass
Specifications: 0.15 in Dia Insulation
Tab Size: 0.25 x 0.032 in
Temperature Rating: 75 deg C
Terminal Type: Crimp
Voltage Rating: 300 VAC

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion-resistance
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges

Resources

RoHS
