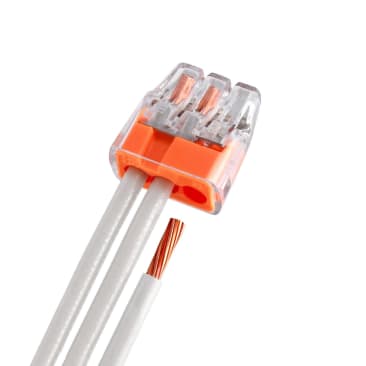

IDEAL 30-1033 MODEL 33 3-PORT IN-SURE PUSH-IN CONNECTOR (PK100)

MFR Part #: 30-1033
SKU #: 1267620
Brand: IDEAL®
UPC: 783250693542
IDEAL® In-Sure™ 30-1033 Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate
Grounding and Bonding Applications
RoHS Compliant | CE Certified | CSA C22.2 File No. 188 | IEC 998-2-2 | UL 94V-2 Flammability Rating | UL 486C, 467

IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 3 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Orange, Tin Plated, 0.78 in L x 0.69 in W x 0.38 in H Dimensions

The In-Sure™ push-in wire connector from IDEAL®. The fastest, easiest, no-twist push-in connector. Perfect for OEM lighting manufacturing, prefabricated wiring systems and other OEM and branch circuit wiring applications. The clear polycarbonate housing allows visual verification of every connection. Simply glide the wire in the low insertion force makes it easy. In-Sure™ also allows removal of the wire after the connection has been established. UL Listed 94 D-Z, CSA Certified, and rated to 600 VAC and 105 deg C. In-Sure™ saves time and improves productivity while perfecting connections.

Product Details

IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 3 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Orange, Tin Plated, 0.78 in L x 0.69 in W x 0.38 in H Dimensions

The In-Sure™ push-in wire connector from IDEAL®. The fastest, easiest, no-twist push-in connector. Perfect for OEM lighting manufacturing, prefabricated wiring systems and other OEM and branch circuit wiring applications. The clear polycarbonate housing allows visual verification of every connection. Simply glide the wire in the low insertion force makes it easy. In-Sure™ also allows removal of the wire after the connection has been established. UL Listed 94 D-Z, CSA Certified, and rated to 600 VAC and 105 deg C. In-Sure™ saves time and improves productivity while perfecting connections.

Attributes

Color: Orange
Country Of Origin: US
Dimensions: 0.78 in L x 0.69 in W x 0.38 in H
Finish: Tin Plated
Material: Nylon/Polycarbonate
Specifications: 3 Ports, 3/8 to 1/2 in Strip Length
Temperature Rating: 221 deg F
Voltage Rating: 600 VAC
Wire Size: 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG
Wire Type: Solid/Stranded/Tin-Bonded

Features

  • No-twist, push-in design reduces repetitive motion fatigue
  • Low insertion force for fast and easy connections
  • Ergonomic, easy to grip design
  • Compact size makes installation easy
  • Clear shell gives visual verification of connection

Resources

Owners/User Manual
RoHS
