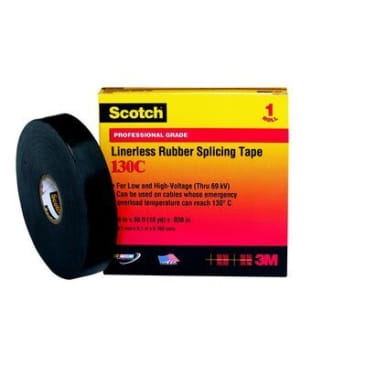

3M 7000006091 2IN X 30FT LINERLESS RBR SPLICE TAPE 130C-2X30
Product Details
Attributes
Features
Resources
3M™, 7000006091, Splicing Tape, 30 ft Length, 2 in Width, 30 mil Thickness, Rubber, Black, 69 kV, 750 V/mil Dielectric Strength, 250 in-lb Tensile Strength, 194 deg F Maximum Operating, Specifications Met: ASTM D 4388-08 Type 1, 2 and 3
Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low- and high-voltage, bus bar insulation, end-sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. High voltage insulating; thermally dissipating; self-bonding. Primary electrical insulation for splicing all solid dielectric cables through 69 kV. It withstands temperatures upto 194 deg F (90 deg C) with emergency overload upto 266 deg F (130 deg C). The tape has excellent electrical and mechanical properties to provide moisture-seal protection.
- Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Suitable for splicing and terminating cables and wires
- Provides an excellent thermal dissipation of splice heat
- Tensile strength rating of 17 lb/in meets professional electrical standards
- Linerless, self-bonding, primary insulating tape rated through 69 kV
- High thermal conductivity
- Ethylene propylene base
- Excellent physical and electrical properties
- Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C
- Physical and electrical properties unaffected by degree of stretch
- Compatible with common, solid dielectric cable insulation
- Uniform tape unwind from roll
- Small roll size (OD)
Product Details
3M™, 7000006091, Splicing Tape, 30 ft Length, 2 in Width, 30 mil Thickness, Rubber, Black, 69 kV, 750 V/mil Dielectric Strength, 250 in-lb Tensile Strength, 194 deg F Maximum Operating, Specifications Met: ASTM D 4388-08 Type 1, 2 and 3
Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low- and high-voltage, bus bar insulation, end-sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. High voltage insulating; thermally dissipating; self-bonding. Primary electrical insulation for splicing all solid dielectric cables through 69 kV. It withstands temperatures upto 194 deg F (90 deg C) with emergency overload upto 266 deg F (130 deg C). The tape has excellent electrical and mechanical properties to provide moisture-seal protection.
Attributes
Features
- Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Suitable for splicing and terminating cables and wires
- Provides an excellent thermal dissipation of splice heat
- Tensile strength rating of 17 lb/in meets professional electrical standards
- Linerless, self-bonding, primary insulating tape rated through 69 kV
- High thermal conductivity
- Ethylene propylene base
- Excellent physical and electrical properties
- Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C
- Physical and electrical properties unaffected by degree of stretch
- Compatible with common, solid dielectric cable insulation
- Uniform tape unwind from roll
- Small roll size (OD)
