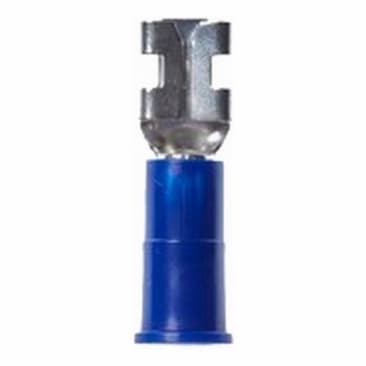

3M 7000133662 FEMALE DISCONNECT VINYL INSLTD 25PK FDV14-187Q
MFR Part #: 7000133662
SKU #: 1159390
Brand: 3M™
UPC: 00051128600054
3M™ 7000133662 Insulated Disconnect Terminal, 16 to 14 AWG Conductor, 0.032 x 0.187 in Tab, Brass, Blue, Insulated
Product Details
Attributes
Features
Resources
3M™, 7000133662, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.032 x 0.187 in Tab, 600 VAC, Specifications: 0.78 in OAL, -40 to 221 deg F, Brass, Blue, TiN Plated, Insulated: Insulated
Color:
Blue
Conductor Size:
16 to 14 AWG
Finish:
Tin Plated
Insulated:
Insulated
Material:
Brass
Specifications:
0.78 in OAL
Tab Size:
0.032 x 0.187 in
Temperature Rating:
-40 to 221 deg F
Type:
Insulated Standard
Voltage Rating:
600 VAC
- Vinyl insulated, butted seam barrel with a funnel designed, polyvinyl chloride sleeve allows for easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Mates with 0.187 in wide male tab
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Rated 600 v for building wire and 1000 v for signs, fixtures or luminaires
Product Details
3M™, 7000133662, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.032 x 0.187 in Tab, 600 VAC, Specifications: 0.78 in OAL, -40 to 221 deg F, Brass, Blue, TiN Plated, Insulated: Insulated
Attributes
Color: Blue
Conductor Size: 16 to 14 AWG
Finish: Tin Plated
Insulated: Insulated
Material: Brass
Specifications: 0.78 in OAL
Tab Size: 0.032 x 0.187 in
Temperature Rating: -40 to 221 deg F
Type: Insulated Standard
Voltage Rating: 600 VAC
Features
- Vinyl insulated, butted seam barrel with a funnel designed, polyvinyl chloride sleeve allows for easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Mates with 0.187 in wide male tab
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Rated 600 v for building wire and 1000 v for signs, fixtures or luminaires
