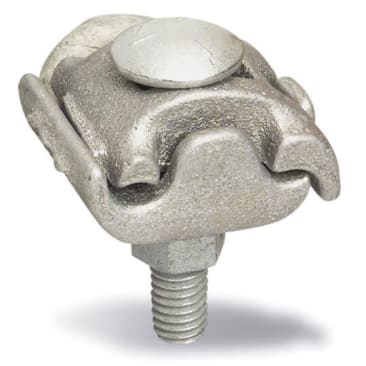

ABB PAA69 Image 1

ABB PAA69 BLACKBURN PARALLEL GROOVE CONNECTOR

MFR Part #: PAA69
SKU #: 1123726
Brand: ABB | Blackburn®
UPC: 783786330102
Blackburn® PAA69 2-Conductor Type PAA Dual Rated Parallel Groove Clamp, 8 to 1/0 AWG Main/Run, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 8 to 1/0 AWG Tap, 3/8 in, Aluminum
Galvanized Steel Carriage Bolt, Nut and Lockwasher
For securing conductors

Blackburn® Parallel Groove Clamp, 2-Conductor Type PAA Dual Rated, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 8 to 1/0 AWG Main/Run Size, 8 to 1/0 AWG Tap, 3/8 in Bolt, 35 kV, 9/16 in Bolt Head, 0.128 to 0.414 in Dia Main/Tap Conductor, Aluminum, Bare, 1-3/8 in L x 1-5/8 in W x 2-7/32 in H

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.

Product Details

Blackburn® Parallel Groove Clamp, 2-Conductor Type PAA Dual Rated, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 8 to 1/0 AWG Main/Run Size, 8 to 1/0 AWG Tap, 3/8 in Bolt, 35 kV, 9/16 in Bolt Head, 0.128 to 0.414 in Dia Main/Tap Conductor, Aluminum, Bare, 1-3/8 in L x 1-5/8 in W x 2-7/32 in H

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.

Attributes

Bolt Size: 3/8 in
Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
Country Of Origin: India
Dimensions: 1-3/8 in L x 1-5/8 in W x 2-7/32 in H
Finish: Bare
Main/Run Size: 8 to 1/0 AWG
Material: Aluminum
Specifications: 9/16 in Bolt Head, 0.128 to 0.414 in Dia Main/Tap Conductor
Tap Size: 8 to 1/0 AWG
Type: 2-Conductor Type PAA Dual Rated
Voltage Rating: 35 kV

Features

  • High strength, heat treated cast aluminum alloy provides secure connections
  • Dual rated for use on aluminum, ACSR and copper conductors
  • All seasons environmental conditions
  • One-bolt clamp
  • Pre-filled with oxide inhibitor
  • 8 to 1/0 AWG ACSR, 2/0 AWG stranded to 8 AWG solid main conductor range for aluminum/copper
  • 8 to 1/0 AWG tap conductor range ACSR, 2/0 AWG stranded to 8 AWG solid tap conductor range for aluminum/copper
