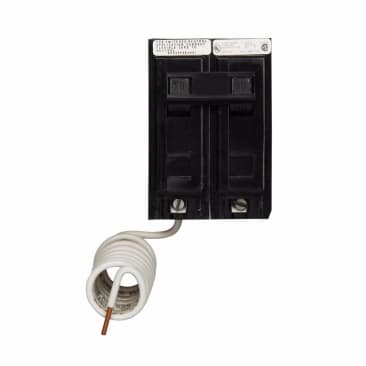

CUTLER HAMMER BAB2030 2 POLE 30 AMP BOLT-IN BREAKER

MFR Part #: BAB2030
SKU #: 0711460
Brand: EATON
UPC: 786679302309
EATON QuickLag® BAB2030 Type BAB Miniature Circuit Breaker, 240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Trip
Datacentres, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities and Industrial Applications
CSA Certified | HACR Rated | UL 489

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Non-Interchangeable Trip, 2 Pole, 1 ph, Steel Box Lug, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.9 x 2.2 x 4.8 in

EATON bolt-on miniature circuit breakers offer superior protection for panel boards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Non-Interchangeable Trip, 2 Pole, 1 ph, Steel Box Lug, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.9 x 2.2 x 4.8 in

EATON bolt-on miniature circuit breakers offer superior protection for panel boards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.

Attributes

Amperage Rating: 30 A
Country Of Origin: Dominican Republic
Number of Poles: 2
Connection Type: Steel Box Lug
Dimensions: 3.9 x 2.2 x 4.8 in
Frequency Rating: 50/60 Hz
Interrupt Rating: 10 kA
Mounting Type: Bolt-On
Phase: 1
Temperature Rating: 40 deg C
Trip Type: Non-Interchangeable
Type: Type BAB
Voltage Rating: 240 VAC
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installations and on-site custom configuration easy
  • Switching duty rated for 120 VAC fluorescent light applications

Resources

Owners/User Manual
Specification Sheet
