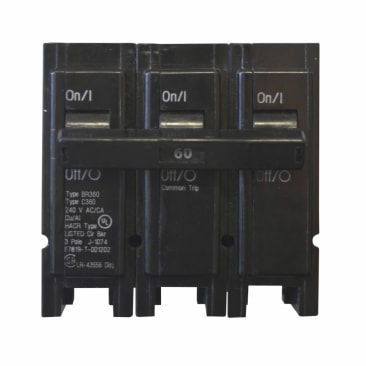

CUTLER HAMMER BR360 Image 1
CUTLER HAMMER BR360 Image 2
CUTLER HAMMER BR360 Image 3
content loaded
CUTLER HAMMER BR360 Image 1

CUTLER HAMMER BR360 PUSH-IN 60 AMP 3 POLE BREAKER

MFR Part #: BR360
SKU #: 0711140
Brand: EATON
UPC: 786676367950
EATON BR360 Type BR Circuit Breaker, 240 VAC, 60 A, 10 kA Interrupt, 3 Poles, Common/Thermal Magnetic Trip
10 years
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Loadcenters and Circuit Protection Applications
CSA Certified | Federal Specification W-C-375 | NEMA Approved | UL 489

EATON Circuit Breaker, Type BR, 240 VAC, 60 A, 10 kA Interrupt, Common/Thermal Magnetic Trip, 3 Pole, 3 ph, 4 to 1/0 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 240 VAC, 60 A, 10 kA Interrupt, Common/Thermal Magnetic Trip, 3 Pole, 3 ph, 4 to 1/0 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 60 A
Country Of Origin: Dominican Republic
Mounting Type: Plug-On
Number of Poles: 3
Voltage Rating: 240 VAC
Dimensions: 3 in L x 3 in W x 3 in H
Enclosure Type: NEMA 1/4X/3R
Interrupt Rating: 10 kA
Phase: 3
Temperature Rating: 600 to 750 deg C
Trip Type: Common/Thermal Magnetic
Type: Type BR
Wire Size: 4 to 1/0 AWG

Features

  • Common trip requires three 1 in spaces
  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • For 3-pole circuit breakers carry listing for HACR applications

Resources

Catalog
Line Drawing
Specification Sheet
