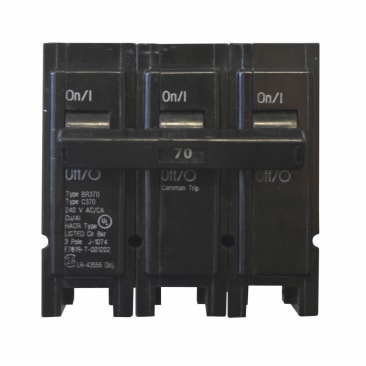

CUTLER HAMMER BR370 PUSH-IN 70 AMP 3 POLE BREAKER

MFR Part #: BR370
SKU #: 0711145
Brand: EATON
UPC: 786676368001
EATON BR370 Type BR Circuit Breaker, 240 VAC, 70 A, 10 kA Interrupt, 3 Poles, Common Trip
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Circuit Protection and Type BR Load Center
CE Certified | CSA Certified | Federal Specification W-C-375 | UL 489

EATON Circuit Breaker, Type BR, 240 VAC, 70 A, 10 kA Interrupt, Common Trip, 3 Pole, 3 ph, Handle Actuator, 4 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 3-1/4 in L x 3 in W x 4 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 240 VAC, 70 A, 10 kA Interrupt, Common Trip, 3 Pole, 3 ph, Handle Actuator, 4 to 1/0 AWG Wire, Plug-On Mount, 40 deg C, 3-1/4 in L x 3 in W x 4 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 70 A
Country Of Origin: Dominican Republic
Mounting Type: Plug-On
Number of Poles: 3
Voltage Rating: 240 VAC
Actuator Type: Handle
Dimensions: 3-1/4 in L x 3 in W x 4 in H
Interrupt Rating: 10 kA
Phase: 3
Temperature Rating: 40 deg C
Trip Type: Common
Type: Type BR
Wire Size: 4 to 1/0 AWG

Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • Standard interrupting capacity
