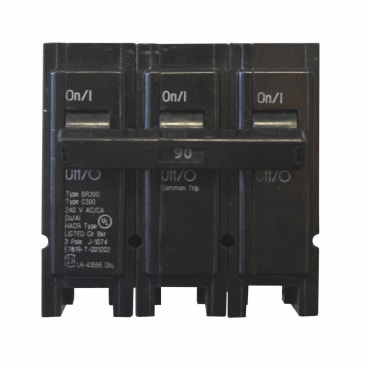

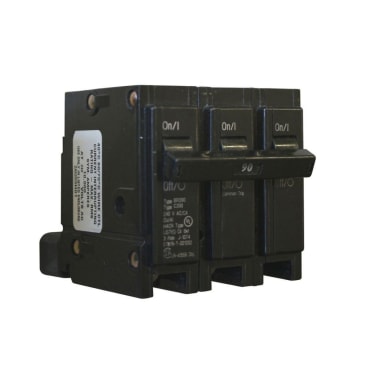

CUTLER HAMMER BR390 3 POLE 90 AMP PLUG-IN BREAKER
Product Details
Attributes
Features
Resources
EATON Circuit Breaker, Type BR, 240 VAC, 90 A, 10 kA Interrupt, Common/Thermal Magnetic Trip, 3 Pole, 4 to 1/0 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in Compliant with NEC® requirements
- One-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installations
- BR load centers feature Robertson® slotted square combo screw heads, which means only one screwdriver is need for installations
Product Details
EATON Circuit Breaker, Type BR, 240 VAC, 90 A, 10 kA Interrupt, Common/Thermal Magnetic Trip, 3 Pole, 4 to 1/0 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
Attributes
Features
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in Compliant with NEC® requirements
- One-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installations
- BR load centers feature Robertson® slotted square combo screw heads, which means only one screwdriver is need for installations
