CUTLER HAMMER BR3100 Image 1
CUTLER HAMMER BR3100 Image 2
content loaded
CUTLER HAMMER BR3100 Image 1

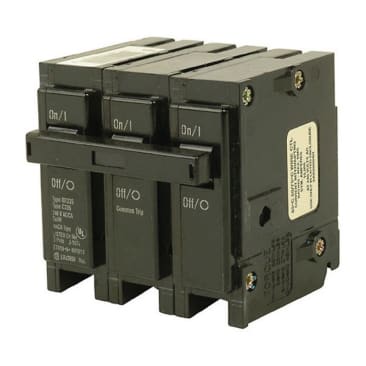

EATON BR3100 PUSH-IN 100 AMP 3 POLE BREAKER

MFR Part #: BR3100
SKU #: 0711150
Brand: EATON
UPC: 786676368094
EATON BR3100 Type BR Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
10 years
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Load Centers and Circuit Protection
CSA Certified | Federal Specification W-C-375 | NEMA Approved | UL 489

EATON Circuit Breaker, Type BR, 120/240 VAC, 100 A, 10 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 1 ph ph, 1 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 3 in L x 3 in W x 3 in H Dimensions

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 120/240 VAC, 100 A, 10 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 1 ph ph, 1 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 3 in L x 3 in W x 3 in H Dimensions

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 100 A
Country Of Origin: Dominican Republic
Mounting Type: Plug-On
Number of Poles: 3
Voltage Rating: 120/240 VAC
Dimensions: 3 in L x 3 in W x 3 in H
Enclosure Type: NEMA 1/4X/3R
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 600 to 750 deg C
Trip Type: Thermal/Magnetic
Type: Type BR
Wire Size: 1 AWG

Features

  • Common trip requires three 1 in spaces
  • All BR circuit breakers have rejection tab feature
  • Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • For 3-pole circuit breakers carry listing for HACR application

Resources

Catalog
Line Drawing
Specification Sheet
