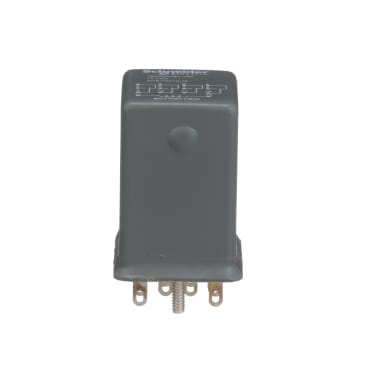

ALLIED ELEC 782XDXH21-24D 4PDT 5A HERM SEALED MECH REL

MFR Part #: 782XDXH21-24D
SKU #: 1182556
Brand: Schneider Electric
UPC: 400008868013
Schneider Electric 782XDXH21-24D Relay, 5 A, 4CO Contact, 24 VDC V Coil
Choice for automation panels and controls, suitable for harsh, hazardous and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical and mines and minerals sectors
UL Class I Division 2 requirements | IP20 Rated

Schneider Electric, 782XDXH21-24D, Relay, 5 A, 24 VDC Coil, 4CO Contact Form, Socket Mounting, Plug-In Terminal, -49 to 158 deg F, 1.28 in H x 0.90 in W x 1.13 in D Dimensions

This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 4 CO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 650O. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.

Product Details

Schneider Electric, 782XDXH21-24D, Relay, 5 A, 24 VDC Coil, 4CO Contact Form, Socket Mounting, Plug-In Terminal, -49 to 158 deg F, 1.28 in H x 0.90 in W x 1.13 in D Dimensions

This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 5A 4 CO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 650O. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The silver alloy 4PDT configuration gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.

Attributes

Amperage Rating: 5 A
Coil Voltage: 24 VDC
Contact Form: 4CO
Country Of Origin: China
Dimensions: 1.28 in H x 0.90 in W x 1.13 in D
Mounting Type: Socket
Temperature Rating: -49 to 158 deg F
Terminal Type: Plug-In

Features

  • Wide range of EMR Relays to meet general industrial applications
  • Dedicated power relays (725) for high power applications like Electrical Vehicle charging
  • Hermetically sealed relays (782H) for hazardous locations
  • Pre-assembled relays to simplify selection and installation, just one reference with complete solution of the relay, socket, and accessories
  • Push-in sockets to save up to 64% wiring time and ease maintenance
  • Bus jumper to ease the wiring when multiple EMR Relays are used
  • One step lockable test button
  • Mechanical indicator for contact status
