LEVITON DS30-AX Image 1

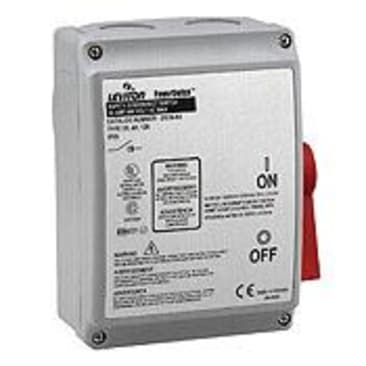

LEVITON DS30-AX Image 2
content loaded
LEVITON DS30-AX Image 1

LEVITON LDS30-AX POWERSWITCH 30A 600V NON-FUSED DISCONNECT SWITCH GREY

MFR Part #: DS30-AX
SKU #: 1159139
Brand: Leviton®
UPC: 078477388259
Leviton® DS30-AX Non-Fused Watertight Safety Disconnect Switch, 600 VAC, 30 A, 5 hp, 1NO Contact Form, 3 Poles
2 Years Limited
Valox® 357 Handle, Stainless Steel External Hardware
Industrial Applications
UL 508 | File No. E63969 | cULus Listed | NOM | CE Certified | IEC 947-3

Leviton® Safety Disconnect Switch, Non-Fused Watertight, Series: DS Series, 600 VAC, 30 A, 5 hp, 3, 3 Pole, 10 kA Short Circuit, 1NO, Cam Lever Actuator, NEMA 3R/4X/12K/IP67, -40 to 65 deg C, 8.4 in H x 5.28 in W x 4.76 in D, Valox® 357, Gray

PowerSwitch® SDS devices meet NEC Article 430 for separate disconnect in-sight of motor loads and OSHA Title 29 CFR 1910 and 1926 for lockout, tag out protection. The complete PowerSwitch® SDS package is non-metallic, watertight and is engineered to enhance safety and performance for critical power control installations.

Product Details

Leviton® Safety Disconnect Switch, Non-Fused Watertight, Series: DS Series, 600 VAC, 30 A, 5 hp, 3, 3 Pole, 10 kA Short Circuit, 1NO, Cam Lever Actuator, NEMA 3R/4X/12K/IP67, -40 to 65 deg C, 8.4 in H x 5.28 in W x 4.76 in D, Valox® 357, Gray

PowerSwitch® SDS devices meet NEC Article 430 for separate disconnect in-sight of motor loads and OSHA Title 29 CFR 1910 and 1926 for lockout, tag out protection. The complete PowerSwitch® SDS package is non-metallic, watertight and is engineered to enhance safety and performance for critical power control installations.

Attributes

Actuator Type: Cam Lever
Amperage Rating: 30 A
Color: Gray
Contact Form: 1NO
Country Of Origin: Mexico
Dimensions: 8.4 in H x 5.28 in W x 4.76 in D
Enclosure Type: NEMA 3R/4X/12K/IP67
Horsepower: 5 hp
Material: Valox® 357
Number of Poles: 3
Phase: 3
Series: DS Series
Short Circuit Current Rating: 10 kA
Temperature Rating: -40 to 65 deg C
Type: Non-Fused Watertight
Voltage Rating: 600 VAC

Features

  • Bottom-hinged enclosure, a Leviton® exclusive for faster servicing

Resources

SDS
Specification Sheet
Technical Bulletin
