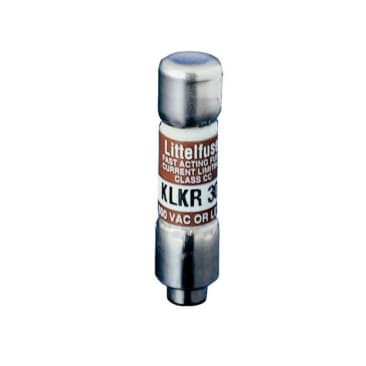

FUSETEK KLKR-15 15 AMP CLASS CC FAST ACTING FUSE
Product Details
Attributes
Features
Resources
Littelfuse® POWR-GARD®, KLKR015, Fast Acting Fuse, High Speed North American Style, Series: KLKR, Non-Indicating, Rejection, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 13/32 in Dia x 1-1/2 in L Body
KLKR series Class CC fuses are fast acting fuses intended for general purpose branch circuit protection. Their compact size, fast acting overload response and their highly current limiting design make them ideal for use in OEM equipment and control panels because solid state devices such as SCRs and other electronic equipment generally require fast acting protection.
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Nickel plated bronze cap
- 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
- Compared to other UL listed fuses, class CC fuses are the most current-limiting, rating for rating
- For example, when 600 V three-pole, 30 A class R fuse blocks are replaced by Littelfuse class CC fuse blocks, panel-mounting space is reduced approximately 70 percentage
- Extremely current-limiting reduces damage caused by heating and magnetic effects of short circuit currents- stops damaging short circuit faster than any mechanical protective device
- Fast-acting fuses used for protection of equipment containing solid state devices or other electronic components requiring fast response on overloads
