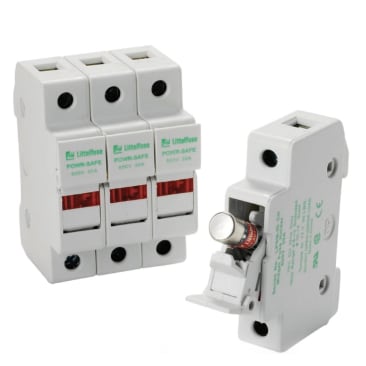

FUSES LPSC001 Image 1

DINRAIL MNT FUSE HOLDER F/CLASS CC FUSES LPSC001

MFR Part #: LPSC001
SKU #: 1027233
Brand: Littelfuse®
UPC: 079458029000
Littelfuse® POWR-SAFE LPSC001 Dead Front Non-Indicating Fuse Holder, 600 VAC/VDC, 30 A, Class: CC, 14 to 8 AWG Wire, 1 Pole
Electronic Equipment and Appliances Applications
UL E14721|CSA LR7316|UL 94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Littelfuse® POWR-SAFE Fuse Holder, Dead Front Non-Indicating, Series: LPSC, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Pressure Plate Connection, 14 to 8 AWG Wire, DIN Rail Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, For Use With: Cartridge Fuse, Thermoplastic, White, 0.7 in W x 2.33 in D x 3.06 in H Dimensions

Littelfuse® POWR-SAFE in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Product Details

Littelfuse® POWR-SAFE Fuse Holder, Dead Front Non-Indicating, Series: LPSC, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Pressure Plate Connection, 14 to 8 AWG Wire, DIN Rail Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, For Use With: Cartridge Fuse, Thermoplastic, White, 0.7 in W x 2.33 in D x 3.06 in H Dimensions

Littelfuse® POWR-SAFE in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Attributes

Amperage Rating: 30 A
Class: CC
Color: White
Connection Type: Pressure Plate
Country Of Origin: CN
Dimensions: 0.7 in W x 2.33 in D x 3.06 in H
Fuse Diameter: 13/32 in
Fuse Length: 1-1/2 in
Material: Thermoplastic
Mounting Type: DIN Rail
Number of Poles: 1
Series: LPSC
Suitable For Use With: Cartridge Fuse
Type: Dead Front Non-Indicating
Voltage Rating: 600 VAC/VDC
Wire Size: 14 to 8 AWG

Features

  • Littelfuse® POWR-SAFE dead front holders provide optimum protection to personnel for class CC and midget style fuses
  • 200 kA interrupting rating
  • Easy installation and fuse removal with no additional pullers or tools required
  • 35 mm DIN rail mounting
  • Ventilated design for cooler operation
  • Meets dead front requirements
  • Compact design
  • 8 to 14 AWG copper wire
