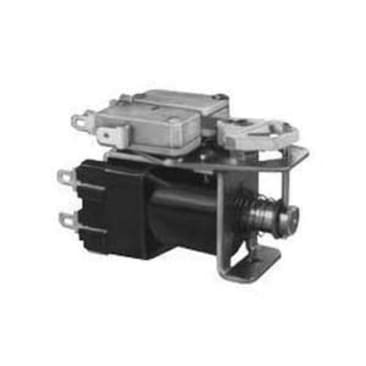

TYCO S89R11APP1-120 POWER RELAY DPDT 120VAC 15A PLUG-IN
MFR Part #:Â S89R11APP1-120
SKU #:Â 1133642
Brand:Â TE
UPC:Â 400008017749
TE S89R Series S89R11APP1-120 Bistable Impulse Relay, 15 A, 8 -Pin, DPDT, 120 VAC Coil
For garage door controls, motor reversing and lighting controls
CSA File No. LR15734 Certified | RU File E22575 Listed
Product Details
Attributes
Features
Resources
TE Bistable Impulse Relay, Series: S89R Series, 15 A, 9 VA, 60 Hz, 120 VAC Coil, 250 VAC/125 VDC Switching Voltage, 260 Ohm, DPDT, 8 Pins, 2 Pole, Plug-In Mount, Latching Coil, 10000 cycles Operating Cycles, Silver Contact, -10 to 60 deg C, 61.5 mm Height, 50.8 mm Width, 68.6 mm D
Amperage Rating:
15 A
Coil Type:
Latching
Coil Voltage:
120 VAC
Contact Configuration:
DPDT
Contact Material:
Silver
Depth:
68.6 mm
Frequency Rating:
60 Hz
Height:
61.5 mm
Mounting Type:
Plug-In
Number of Pins:
8
Number of Poles:
2
Operating Cycles:
10000 cycles
Power Rating:
9 VA
Resistance:
260 Ohm
Series:
S89R Series
Switching Voltage:
250 VAC/125 VDC
Temperature Rating:
-10 to 60 deg C
Width:
50.8 mm
- Low cost, bistable impulse relay
- Operates on 75 ms minimum pulse
- S89R available with plastic cover and octal plug-in base
- Dust cover with octal plug-in base coil and switch termination
Product Details
TE Bistable Impulse Relay, Series: S89R Series, 15 A, 9 VA, 60 Hz, 120 VAC Coil, 250 VAC/125 VDC Switching Voltage, 260 Ohm, DPDT, 8 Pins, 2 Pole, Plug-In Mount, Latching Coil, 10000 cycles Operating Cycles, Silver Contact, -10 to 60 deg C, 61.5 mm Height, 50.8 mm Width, 68.6 mm D
