LITHONIA 284HU8 120-347V 3000K/4000K/5000K CCT CNY PHOTOCELL LED ADJUSTABLE LIGHT OUTPUT
MFR Part #: CNY LED ALO SWW2 UVOLT PE PIR DDB M2
SKU #: 1270380
Brand: Acuity Brands | Lithonia Lighting®
UPC: 197589495041

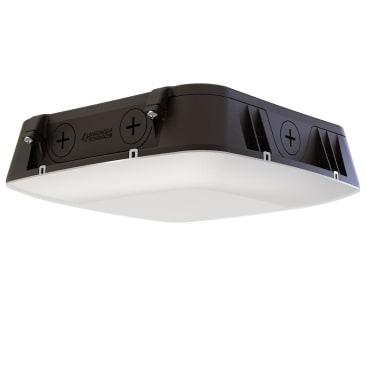

Lithonia Lighting® CNY LED ALO SWW2 UVOLT PE PIR DDB M2 CNY Square Canopy Lighting, LED Lamp, 34, 52, 75 W Fixture, 120 to 347 V, Dark Bronze Housing
5 Years
This product may be subject to ecological fees.
A selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set
Allow for this canopy luminaire to offer 54 customizable options in one fixture, designed for uniform light distribution while providing visually comfortable illumination, Ideal for parking garages, building entrances and walkways
cULus Listed | IP65 | IESNA LM-79 and LM-80 standards | DLC Premium qualified
Product Details
Attributes
Features
Lithonia Lighting®, CNY LED ALO SWW2 UVOLT PE PIR DDB M2, Canopy Lighting, Square, Series: CNY, 120 to 347 V, 34, 52, 75 W Fixture, LED Lamp, 139/147/143/133/144/137/123/136/125 Lumens/W Light Output, 100000 hrs Average Life, 3000/4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Continuous Dimmable Ballast, Frosted Lens, 5000/7500/10000 Lumens, Surface Mounting, Die-Cast Aluminum Housing Material, Dark Bronze Housing Finish, 3 in H x 10 in W x 10 in D Dimensions
Average Life:
100000 hrs
Ballast Type:
0 to 10 V Continuous Dimmable
Color Rendering Index (CRI):
80
Color Temperature:
3000/4000/5000 K
Country Of Origin:
Vietnam
Dimensions:
3 in H x 10 in W x 10 in D
Fixture Wattage:
34, 52, 75 W
Housing Finish:
Dark Bronze
Housing Material:
Die-Cast Aluminum
Lamp Type:
LED
Lens Type:
Frosted
Light Output:
139/147/143/133/144/137/123/136/125 Lumens/W
Lumens:
5000/7500/10000 Lumens
Mounting Type:
Surface
Series:
CNY
Type:
Square
Voltage Rating:
120 to 347 V
- The CNY LED ALO Canopy Luminaire from Lithonia Lighting is where versatility meets innovation With an incredible 54 customizable options packed into a single luminaire, you have the power to tailor your lighting experience right on the spot
- Adjust color temperature, lumen output, photocell settings, and even activate the integrated motion sensor
- It's your lighting, your way The CNY LED ALO's 10 in x 10 in footprint, matching that of typical HID luminaires, goes beyond aesthetics
- It expertly conceals any unsightly imperfections, ensuring a seamless, hassle-free installation that eliminates the need for extra patching or repairs
- Transform your outdoor space with the CNY LED ALO and enjoy the perfect combination of visually comfortable illumination, energy efficiency, and complete customization - all bundled in a sleek and durable package
- Controls - Includes a selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set to maintain 10% or fully off when no motion is detected
- Installation - Q uick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring
Product Details
Lithonia Lighting®, CNY LED ALO SWW2 UVOLT PE PIR DDB M2, Canopy Lighting, Square, Series: CNY, 120 to 347 V, 34, 52, 75 W Fixture, LED Lamp, 139/147/143/133/144/137/123/136/125 Lumens/W Light Output, 100000 hrs Average Life, 3000/4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Continuous Dimmable Ballast, Frosted Lens, 5000/7500/10000 Lumens, Surface Mounting, Die-Cast Aluminum Housing Material, Dark Bronze Housing Finish, 3 in H x 10 in W x 10 in D Dimensions
Attributes
Average Life: 100000 hrs
Ballast Type: 0 to 10 V Continuous Dimmable
Color Rendering Index (CRI): 80
Color Temperature: 3000/4000/5000 K
Country Of Origin: Vietnam
Dimensions: 3 in H x 10 in W x 10 in D
Fixture Wattage: 34, 52, 75 W
Housing Finish: Dark Bronze
Housing Material: Die-Cast Aluminum
Lamp Type: LED
Lens Type: Frosted
Light Output: 139/147/143/133/144/137/123/136/125 Lumens/W
Lumens: 5000/7500/10000 Lumens
Mounting Type: Surface
Series: CNY
Type: Square
Voltage Rating: 120 to 347 V
Features
- The CNY LED ALO Canopy Luminaire from Lithonia Lighting is where versatility meets innovation With an incredible 54 customizable options packed into a single luminaire, you have the power to tailor your lighting experience right on the spot
- Adjust color temperature, lumen output, photocell settings, and even activate the integrated motion sensor
- It's your lighting, your way The CNY LED ALO's 10 in x 10 in footprint, matching that of typical HID luminaires, goes beyond aesthetics
- It expertly conceals any unsightly imperfections, ensuring a seamless, hassle-free installation that eliminates the need for extra patching or repairs
- Transform your outdoor space with the CNY LED ALO and enjoy the perfect combination of visually comfortable illumination, energy efficiency, and complete customization - all bundled in a sleek and durable package
- Controls - Includes a selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set to maintain 10% or fully off when no motion is detected
- Installation - Q uick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring
