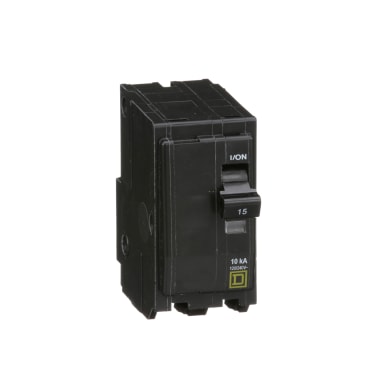

SQUARE D QO215 PUSH-IN 2 POLE 15 AMP BREAKER
Product Details
Attributes
Features
Resources
Square D™, QO215, 2-Pole Miniature Circuit Breaker, Standard, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, NEMA AB1 Enclosure, Plug-On Mounting, 40 deg C, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Standard thermal-magnetic QO and Homeline 15 and 20 A circuit breakers are listed to UL489 and provide overload and short circuit protection for conductors. The QO and Homeline thermal-magnetic circuit breakers are for general use in protecting branch circuit in residential and commercial applications. Use QO and Homeline 15 and 20 A arc fault circuit interrupter circuit breakers that have been listed to UL1699 in order to provide arc fault circuit protection for the entire branch circuit in accordance with the installation requirements in National Electrical Code section 210.12. Thermal-magnetic circuit breakers are not designed, listed, or intended to provide protection against low level hazardous arcing conditions in branch circuit wiring.
- QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
- The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels
- 14 - 10 AWG copper, 14 - 8 AWG copper/aluminum
- Common trip
- Standard
- Designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made square D™ the preferred brand of electrician and homeowners
- First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installations fewer connections
- Frees gutter space no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
