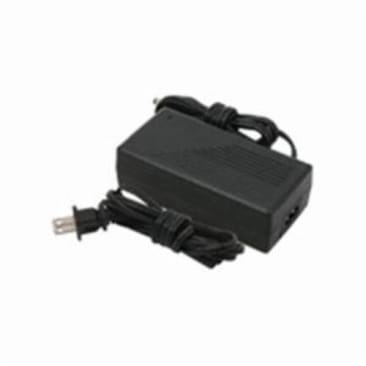

LITELINE LED-DVR-24V-60W 24VDC 60W CLASS 2 LED DRIVER
MFR Part #:Â LED-DVR-24V-60W
SKU #:Â 1249420
Brand:Â Liteline
UPC:Â 771250922991
Liteline LED-DVR-24V-60W Class 2 Constant Voltage LED Plug In Driver, 100 to 240 VAC Input, 24 VDC Output, 60 W Power Rating, 4-5/8 in L x 2-1/16 in W
6 in Power Cord, Plug
For use with 24 volt LED fixture
cULus Listed
Product Details
Attributes
Features
Resources
Liteline LED Plug In Driver, Class 2 Constant Voltage, 100 to 240 VAC Input, 24 VDC Output, 60 W Power, 1.5 A, Power Factor: >/=0.5, 4-5/8 in Length, 2-1/16 in Width, 1-3/8 in Height, 0 to 40 deg C, Black
Amperage Rating:
1.5 A
Color:
Black
Height:
1-3/8 in
Input Voltage:
100 to 240 VAC
Length:
4-5/8 in
Output Voltage:
24 VDC
Power Factor:
>/=0.5
Power Rating:
60 W
Temperature Rating:
0 to 40 deg C
Type:
Class 2 Constant Voltage
Width:
2-1/16 in
- For use with power feeds equipped with 2.1 DC jack
- Open and short circuit protection
- Over voltage protection
- 50/60 hz input frequency
- When used with outdoor LED fixtures, the driver must be installed indoors or enclosed in a watertight box
- Indoor LED class 2 constant voltage
- 5 to 90% RH storage humidity
- The LED driver is equipped with a DC 2.1 jack and 24 AWG SPT cord on the output side for linking 24V LED products
- Compatible with all DazzLED 24 volt LED fixtures
- The overall wattage load of the product should not exceed 80% of 60W (48W)
- Overloading the LED power supply may affect the longevity, overall performance and void the warranty
Product Details
Liteline LED Plug In Driver, Class 2 Constant Voltage, 100 to 240 VAC Input, 24 VDC Output, 60 W Power, 1.5 A, Power Factor: >/=0.5, 4-5/8 in Length, 2-1/16 in Width, 1-3/8 in Height, 0 to 40 deg C, Black
Attributes
Amperage Rating:Â 1.5 A
Color:Â Black
Height:Â 1-3/8 in
Input Voltage:Â 100 to 240 VAC
Length:Â 4-5/8 in
Output Voltage:Â 24 VDC
Power Factor:Â >/=0.5
Power Rating:Â 60 W
Temperature Rating:Â 0 to 40 deg C
Type:Â Class 2 Constant Voltage
Width:Â 2-1/16 in
Features
- For use with power feeds equipped with 2.1 DC jack
- Open and short circuit protection
- Over voltage protection
- 50/60 hz input frequency
- When used with outdoor LED fixtures, the driver must be installed indoors or enclosed in a watertight box
- Indoor LED class 2 constant voltage
- 5 to 90% RH storage humidity
- The LED driver is equipped with a DC 2.1 jack and 24 AWG SPT cord on the output side for linking 24V LED products
- Compatible with all DazzLED 24 volt LED fixtures
- The overall wattage load of the product should not exceed 80% of 60W (48W)
- Overloading the LED power supply may affect the longevity, overall performance and void the warranty
