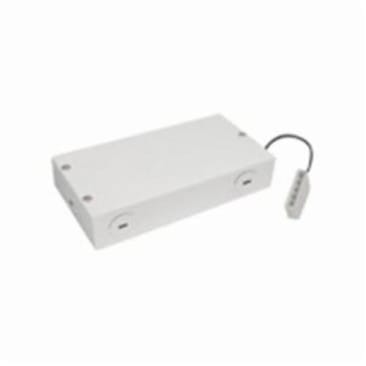

LITELINE LED-HWB-DIM-12V-20W 12VDC 20W HARDWIRE LED DRIVER DIMMABLE
MFR Part #:Â LED-HWB-DIM-12V-20W
SKU #:Â 1264334
Brand:Â Liteline
UPC:Â 771250973405
Liteline LED-HWB-DIM-12V-20W 2-Wire Dimmable LED Driver With Hardwire Box, 100 to 240 VAC Input, 12 VDC Output, 20 W Power Rating, 8 in L x 4-7/16 in W
This product may be subject to ecological fees.
For use with 12 volt LED lighting products
cULus Listed
Product Details
Attributes
Features
Resources
Liteline LED Driver, 2-Wire Dimmable, 100 to 240 VAC Input, 12 VDC Output, 20 W Power, 1.66 A, Power Factor: >0.5, 8 in Length, 4-7/16 in Width, 1-5/8 in Height, 0 to 40 deg C, Steel, White
Amperage Rating:
1.66 A
Color:
White
Height:
1-5/8 in
Input Voltage:
100 to 240 VAC
Length:
8 in
Material:
Steel
Output Voltage:
12 VDC
Power Factor:
>0.5
Power Rating:
20 W
Temperature Rating:
0 to 40 deg C
Type:
2-Wire Dimmable
Width:
4-7/16 in
- Short circuit protection
- Open circuit protection
- Suitable for indoor applications
- 50/60 hz input frequency
- Compatible with all Liteline® 12V LED lighting, including UCP-LED series under cabinet puck, 12V LED strips, 12V LED tape
- With a 5-port wiring hub with polarized connectors and 75 in lead
- 20 gauge painted steel box with dedicated compartment for hardwiring and seven 7/8 in knockouts for maximum flexibility in positioning and in-line installation
- Includes mounting screw holes to allow mounting of box in under cabinet applications
Product Details
Liteline LED Driver, 2-Wire Dimmable, 100 to 240 VAC Input, 12 VDC Output, 20 W Power, 1.66 A, Power Factor: >0.5, 8 in Length, 4-7/16 in Width, 1-5/8 in Height, 0 to 40 deg C, Steel, White
Attributes
Amperage Rating:Â 1.66 A
Color:Â White
Height:Â 1-5/8 in
Input Voltage:Â 100 to 240 VAC
Length:Â 8 in
Material:Â Steel
Output Voltage:Â 12 VDC
Power Factor:Â >0.5
Power Rating:Â 20 W
Temperature Rating:Â 0 to 40 deg C
Type:Â 2-Wire Dimmable
Width:Â 4-7/16 in
Features
- Short circuit protection
- Open circuit protection
- Suitable for indoor applications
- 50/60 hz input frequency
- Compatible with all Liteline® 12V LED lighting, including UCP-LED series under cabinet puck, 12V LED strips, 12V LED tape
- With a 5-port wiring hub with polarized connectors and 75 in lead
- 20 gauge painted steel box with dedicated compartment for hardwiring and seven 7/8 in knockouts for maximum flexibility in positioning and in-line installation
- Includes mounting screw holes to allow mounting of box in under cabinet applications
