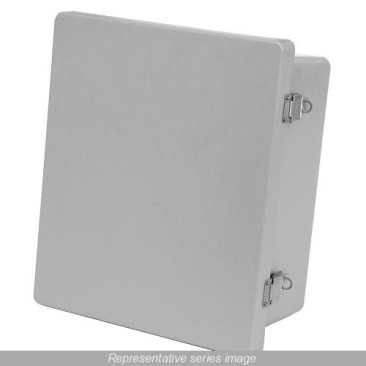

HAMMOND PJ12124T N4X WLMNT ENCL-12.14X12.26X4.13-FIBERGLASS
MFR Part #: PJ12124T
SKU #: 1217888
Brand: Hammond®
UPC: 62398077026
Hammond® PJ12124T PJ Series Non-Metallic Junction Box, 12.13 in H x 12.13 in W x 4.13 in D, Continuous Hinged Cover, NEMA 1/2/3/3R/4/4X/12/13 NEMA Rating, Fiberglass Polyester
1 Year
Mounting Hardware
For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures and ideal in applications with high temperatures or highly corrosive environments
REACH Compliant|cULus Listed|CE Marked|IEC 60529, IP669|UL 508A|RoHS Compliant
Product Details
Attributes
Features
Resources
Hammond®, PJ12124T, Junction Box, Non-Metallic, Series: PJ Series, 12.13 in Height, 12.13 in Width, 4.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13 NEMA Rating, Continuous Hinged Cover, 10.75 in H x 10.88 in W Panel, Lock: Twist Latch, Feet Bracket Mounting, -40 to 130 deg C, Fiberglass Polyester, Gray
Country Of Origin:
US
Color:
Gray
Cover Type:
Continuous Hinged
Depth:
4.13 in
Height:
12.13 in
Lock:
Twist Latch
Material:
Fiberglass Polyester
Mounting Type:
Feet Bracket
NEMA Rating:
NEMA 1/2/3/3R/4/4X/12/13
Panel Size:
10.75 in H x 10.88 in W
Series:
PJ Series
Temperature Rating:
-40 to 130 deg C
Type:
Non-Metallic
Width:
12.13 in
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- 10 to 32 threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel butterfly type twist latch door fasteners.
- Door fasteners include a provision for padlocking
- Twist latch enclosures are available with bonded polycarbonate viewing windows
- Door is supported with a continuous stainless steel hinge
- Captive oil resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure
- Impact index of 6.78J (5 ft/lb)
Product Details
Hammond®, PJ12124T, Junction Box, Non-Metallic, Series: PJ Series, 12.13 in Height, 12.13 in Width, 4.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13 NEMA Rating, Continuous Hinged Cover, 10.75 in H x 10.88 in W Panel, Lock: Twist Latch, Feet Bracket Mounting, -40 to 130 deg C, Fiberglass Polyester, Gray
Attributes
Country Of Origin: US
Color: Gray
Cover Type: Continuous Hinged
Depth: 4.13 in
Height: 12.13 in
Lock: Twist Latch
Material: Fiberglass Polyester
Mounting Type: Feet Bracket
NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13
Panel Size: 10.75 in H x 10.88 in W
Series: PJ Series
Temperature Rating: -40 to 130 deg C
Type: Non-Metallic
Width: 12.13 in
Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- 10 to 32 threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel butterfly type twist latch door fasteners.
- Door fasteners include a provision for padlocking
- Twist latch enclosures are available with bonded polycarbonate viewing windows
- Door is supported with a continuous stainless steel hinge
- Captive oil resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure
- Impact index of 6.78J (5 ft/lb)
