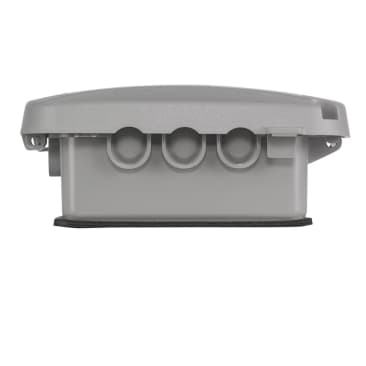

INTERMATIC WP5000G EXTRA-DUTY PLASTIC COVER SGL GANG VRT/HRZ
MFR Part #: WP5000G
SKU #: 1244488
Brand: Intermatic®
UPC: 078275145283
Intermatic® WP5000G Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 6-1/2 in L x 4-3/4 in W x 2-1/4 in D, Receptacle Cover, Polycarbonate
1 year
(2) WP17 FlexiGuard™ Inserts, Gasket, Mounting Screws, Knockouts, Base and Cover Assembly
Industrial, Commercial, Manufacturing, Residential, Agricultural, Signage, Athletic Fields, Wet Location and Heavy Duty Applications
2014 NEC Article 406.9(B)(1) Compliant | UL Certified for Type 3R | UL Listed | CSA Certified | CEC Rule 26-702
Product Details
Attributes
Features
Resources
Intermatic® Weatherproof While-In-Use Cover, Heavy Duty Non-Metallic, 1 Outlets, 1 Gangs, 6-1/2 in Length, 4-3/4 in Width, 2-1/4 in Depth, Rectangular Shape, Receptacle Cover, -51 deg C, Neoprene Gasket Insulation, Horizontal/Vertical Mounting, Surface Mounting, Polycarbonate, Gray
Color:
Gray
Country Of Origin:
Mexico
Cover Type:
Receptacle
Depth:
2-1/4 in
Insulation:
Neoprene Gasket
Length:
6-1/2 in
Material:
Polycarbonate
Mounting Orientation:
Horizontal/Vertical
Mounting Type:
Surface
Number of Gangs:
1
Number of Outlets:
1
Shape:
Rectangular
Temperature Rating:
-51 deg C
Type:
Heavy Duty Non-Metallic
Width:
4-3/4 in
- Meets requirements for cold impact testing -60 deg F (-51 deg C)
- Lockable hasp, All models accept up to 1/4 in (6 mm) dia shank
- Impact rated 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Product Details
Intermatic® Weatherproof While-In-Use Cover, Heavy Duty Non-Metallic, 1 Outlets, 1 Gangs, 6-1/2 in Length, 4-3/4 in Width, 2-1/4 in Depth, Rectangular Shape, Receptacle Cover, -51 deg C, Neoprene Gasket Insulation, Horizontal/Vertical Mounting, Surface Mounting, Polycarbonate, Gray
Attributes
Color: Gray
Country Of Origin: Mexico
Cover Type: Receptacle
Depth: 2-1/4 in
Insulation: Neoprene Gasket
Length: 6-1/2 in
Material: Polycarbonate
Mounting Orientation: Horizontal/Vertical
Mounting Type: Surface
Number of Gangs: 1
Number of Outlets: 1
Shape: Rectangular
Temperature Rating: -51 deg C
Type: Heavy Duty Non-Metallic
Width: 4-3/4 in
Features
- Meets requirements for cold impact testing -60 deg F (-51 deg C)
- Lockable hasp, All models accept up to 1/4 in (6 mm) dia shank
- Impact rated 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
