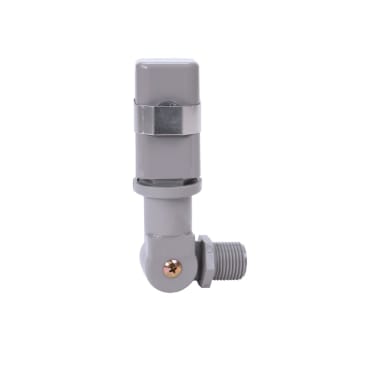

INTERMATIC EK4227S Image 1

INTERMATIC EK4227S STEM AND SWIVEL MOUNT ELECTRONIC PHOTOCONTROL 347 V

MFR Part #: EK4227S
SKU #: 1266782
Brand: Intermatic®
UPC: 0078275152380
Intermatic® EK4227S EK4000 Series, 347 VAC, 1000 W Tungsten, 2 A Ballast, Fixed/Stem Mounting, Polycarbonate
8 years Limited
Exterior Lighting, Landscape Lighting, Parking Lot Lighting, Pedestrian Pathway, Street Lighting and Outdoor Lighting Control Applications
ANSI C136.24 | cULus Listed | PROP65: This product contains Nickel and DEHP known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov | CSA Approved

Intermatic®, EK4227S, Swivel, Series: EK4000 Series, LED Fixture, 347 VAC, 5000 A, 50/60 Hz Frequency, 1000 W Tungsten, 2 A Ballast, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC Turn ON/4.5 FC Turn OFF Sensitivity, Environmental Conditions: -40 to 158 deg F, 10000 hr Operating Cycles, Fixed/Stem Mounting, Polycarbonate, Gray, 1-5/16 in W x 1-1/4 in D x 5-5/8 in H Dimensions

NightFox™ Electronic Photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long life expectations. 1/2-14 NPSM threaded stem fits standard outlet boxes and wall packs with 9 in wire leads.

Product Details

Intermatic®, EK4227S, Swivel, Series: EK4000 Series, LED Fixture, 347 VAC, 5000 A, 50/60 Hz Frequency, 1000 W Tungsten, 2 A Ballast, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC Turn ON/4.5 FC Turn OFF Sensitivity, Environmental Conditions: -40 to 158 deg F, 10000 hr Operating Cycles, Fixed/Stem Mounting, Polycarbonate, Gray, 1-5/16 in W x 1-1/4 in D x 5-5/8 in H Dimensions

NightFox™ Electronic Photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long life expectations. 1/2-14 NPSM threaded stem fits standard outlet boxes and wall packs with 9 in wire leads.

Attributes

Amperage Rating: 5000 A
Ballast Load: 2 A
Color: Gray
Country Of Origin: Mexico
Dimensions: 1-5/16 in W x 1-1/4 in D x 5-5/8 in H
Environmental Conditions: -40 to 158 deg F
Fixture Type: LED
Frequency Rating: 50/60 Hz
Material: Polycarbonate
Mounting Type: Fixed/Stem
Operating Cycles: 10000 hr
Sensitivity: 1.5 FC Turn ON/4.5 FC Turn OFF
Sensor Type: Solid State Photo/Silicon IR Filtered
Series: EK4000 Series
Timing Range: 2 to 5 s
Tungsten Rating: 1000 W
Type: Swivel
Voltage Rating: 347 VAC
Wire Size: 18 AWG

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multi fixture HID and LED installations
  • 220J MOV surge protection element
  • 1/2 in-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 in diameter
  • 15-year design life

Resources

Instruction/Installation Manual
Owners/User Manual
Specification Sheet
