THOMAS 2TG8232-01-UNV-1/2EB-GENIS
MFR Part #:Â 2TG8232-01-UNV-1/2-EB
SKU #:Â 1158324
Brand:Â Signify | Signify Luminaires
UPC:Â 734340981889

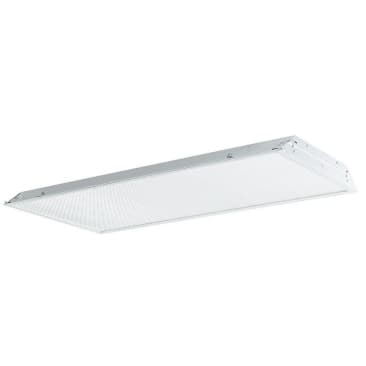

Signify Luminaires Day-Brite 2TG8232-01-UNV-1/2-EB TG8 Indoor Troffer, (2) T8 Fluorescent Lamp, 59 W Fixture, 120 to 277 VAC, Steel Housing
This product may be subject to ecological fees.
Office, Banks, Hospitality, Petrol, Convenience and Fashion Applications
cULus Listed
Product Details
Attributes
Features
Resources
Signify Luminaires Day-Brite Indoor Troffer, Series: TG8, 120 to 277 VAC, 59 W Fixture, T8 Fluorescent Lamp, 32 W Lamp, 2 Lamps, Grid Recessed Trim, 3000 hr Average Life, Electronic Ballast, Prismatic Acrylic Lens, 2800 Lumens, NEMA G Enclosure, Ceiling Mounting, Steel Housing Material, 50 in L x 50 in W x 52.4015 in H Dimensions
The Philips Day-Brite/Philips CFI TG8 troffer is a quality low profile recessed luminaire with specification features. It is designed around modern lamps and electronic ballasts.
Country Of Origin:
Mexico
Dimensions:
50 in L x 50 in W x 52.4015 in H
Fixture Wattage:
59 W
Lumens:
2800 Lumens
Average Life:
3000 hr
Ballast Type:
Electronic
Enclosure Type:
NEMA G
Housing Material:
Steel
Lamp Type:
T8 Fluorescent
Lamp Wattage:
32 W
Lens Type:
Prismatic Acrylic
Mounting Type:
Ceiling
Number of Lamps:
2
Recessed Trim Type:
Grid
Series:
TG8
Voltage Rating:
120 to 277 VAC
- Low profile troffer with specification features for NEMA"G" grid, NEMA"NFG" narrow face grid, NEMA"GR" grid regressed, NEMA"NFSG" narrow faced slot grid or NEMA"F" flange ceiling types
- 3 in D nominal housing, smooth rolled edges on all four sides for easy handling
- Smooth rolled edges on all four sides for easy handling
- Die formed 1-piece housing includes stiffening embossed and provides increased rigidity
- Housing is multi-stage phosphate treated for maximum corrosion-resistance and finish coat is high reflectance baked white enamel
- Lamp pin openings in housing ends for easier re-lamping when using straight lamps (can be relamped without using openings)
- Integral baffling system to prevent light leaks
- Integral wire hanger holes for independent wire suspension
- Embossed with holes provided in housing end for screwing to T-bar if desired
- Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in KO
- T-bar grid clips built into luminaries, no extra parts required, designed for use with standard grid ceiling members, 1-1/2 in maximum height
- Includes integral carrying handle for easy handling and tear tape for easy opening
- Full "C" channel door frames for improved lens support and reduced shipping damage
- Flat steel door frame features smooth rolled edges inside and outside
- Door frame uses T-hinges and can be hinged and latched from either side
- Opposable stainless steel spring-loaded latches are standard for easy operation and consistent retention
- Door frame has true metered corners
- Grid ceiling, one 2-lamp ballast
- Rotating ring locking lampholder is standard for secure and positive retention of lamp
- White door finish
Product Details
Signify Luminaires Day-Brite Indoor Troffer, Series: TG8, 120 to 277 VAC, 59 W Fixture, T8 Fluorescent Lamp, 32 W Lamp, 2 Lamps, Grid Recessed Trim, 3000 hr Average Life, Electronic Ballast, Prismatic Acrylic Lens, 2800 Lumens, NEMA G Enclosure, Ceiling Mounting, Steel Housing Material, 50 in L x 50 in W x 52.4015 in H Dimensions
The Philips Day-Brite/Philips CFI TG8 troffer is a quality low profile recessed luminaire with specification features. It is designed around modern lamps and electronic ballasts.
Attributes
Country Of Origin:Â Mexico
Dimensions:Â 50 in L x 50 in W x 52.4015 in H
Fixture Wattage:Â 59 W
Lumens:Â 2800 Lumens
Average Life:Â 3000 hr
Ballast Type:Â Electronic
Enclosure Type:Â NEMA G
Housing Material:Â Steel
Lamp Type:Â T8 Fluorescent
Lamp Wattage:Â 32 W
Lens Type:Â Prismatic Acrylic
Mounting Type:Â Ceiling
Number of Lamps:Â 2
Recessed Trim Type:Â Grid
Series:Â TG8
Voltage Rating:Â 120 to 277 VAC
Features
- Low profile troffer with specification features for NEMA"G" grid, NEMA"NFG" narrow face grid, NEMA"GR" grid regressed, NEMA"NFSG" narrow faced slot grid or NEMA"F" flange ceiling types
- 3 in D nominal housing, smooth rolled edges on all four sides for easy handling
- Smooth rolled edges on all four sides for easy handling
- Die formed 1-piece housing includes stiffening embossed and provides increased rigidity
- Housing is multi-stage phosphate treated for maximum corrosion-resistance and finish coat is high reflectance baked white enamel
- Lamp pin openings in housing ends for easier re-lamping when using straight lamps (can be relamped without using openings)
- Integral baffling system to prevent light leaks
- Integral wire hanger holes for independent wire suspension
- Embossed with holes provided in housing end for screwing to T-bar if desired
- Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in KO
- T-bar grid clips built into luminaries, no extra parts required, designed for use with standard grid ceiling members, 1-1/2 in maximum height
- Includes integral carrying handle for easy handling and tear tape for easy opening
- Full "C" channel door frames for improved lens support and reduced shipping damage
- Flat steel door frame features smooth rolled edges inside and outside
- Door frame uses T-hinges and can be hinged and latched from either side
- Opposable stainless steel spring-loaded latches are standard for easy operation and consistent retention
- Door frame has true metered corners
- Grid ceiling, one 2-lamp ballast
- Rotating ring locking lampholder is standard for secure and positive retention of lamp
- White door finish
