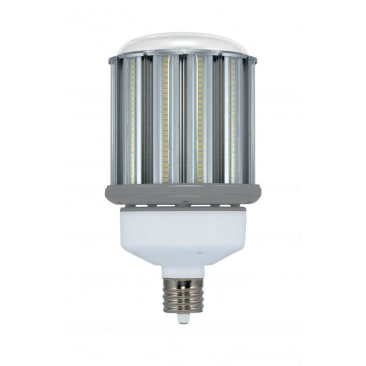

SATCO S28717 Image 1

SATCO S28717 120W/5K/LED/MOGAL BASE 277-347V HID RPLCMNT

MFR Part #: S28717
SKU #: 1224957
Brand: SATCO®
UPC: 045923087172
Please note this item is discontinued (order fulfillment will depend on stock availability): SATCO® S28717 Hi-Pro Signature High Lumen LED HID Replacement Lamp, 120 W, 750 W Incandescent Equivalent, EX39 Mogul Extended LED Lamp, Corn Cob Shape, 16000 Lumens
5 Years Limited
This product may be subject to ecological fees.
Safety Chain
Commercial, Indoor, Outdoor Applications, Industrial Applications and Wet Locations
cULus Listed | DLC Listed | UL File No. 1598C

SATCO® LED HID Replacement Lamp, High Lumen, Series: Hi-Pro Signature, 120W/LED/HID/5000K/277-347V/EX39, 120 W, 750 W Incandescent Equivalent, 347 V AC, EX39 Lamp Base, Corn Cob, 16000 Lumens, 50000 hr Average Life, Natural White, 80+ CRI, 5000 K Color, White Lamp, Non-Dimmable Ballast, Enclosed Fixture, Omnidirectional Beam, 300 deg Beam, 5.88 in Dia x 10.38 in L

Product Details

SATCO® LED HID Replacement Lamp, High Lumen, Series: Hi-Pro Signature, 120W/LED/HID/5000K/277-347V/EX39, 120 W, 750 W Incandescent Equivalent, 347 V AC, EX39 Lamp Base, Corn Cob, 16000 Lumens, 50000 hr Average Life, Natural White, 80+ CRI, 5000 K Color, White Lamp, Non-Dimmable Ballast, Enclosed Fixture, Omnidirectional Beam, 300 deg Beam, 5.88 in Dia x 10.38 in L

Attributes

Ballast Type: Non-Dimmable
Color Temperature: 5000 K
Country Of Origin: China
Lamp Base Type: EX39
Type: High Lumen
Wattage: 120 W
Average Life: 50000 hr
Beam Angle: 300 deg
Beam Type: Omnidirectional
Color: Natural White
Color Rendering Index (CRI): 80+
Designation: 120W/LED/HID/5000K/277-347V/EX39
Dimensions: 5.88 in Dia x 10.38 in L
Fixture Type: Enclosed
Incandescent Equivalent: 750 W
Lamp Finish: White
Lumens: 16000 Lumens
Series: Hi-Pro Signature
Shape: Corn Cob
Voltage Rating: 347 V AC

Features

  • Replaces HID, CFL and incandescent lamps
  • Ballast bypass - direct wire 277 to 347 VAC
  • Base up or base down operation (high/low bay and post top)
  • Emits no UV light/contains no mercury (Hg)
  • Universal burning position
  • 9.25 in L x 9.25 in W x 17.3 in D minimum compartment
  • 200 W fluorescent equivalent

Resources

Specification Sheet
