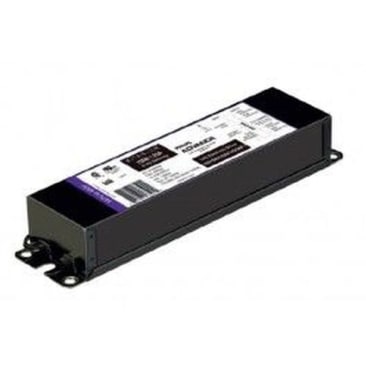

PHILIPS 503946 Image 1

PHILIPS 503946 XH150C070V210FNF1M 150W 0.70A 210V 347-480V

MFR Part #: 503946
SKU #: 1116663
Brand: Signify | Advance
UPC: 781087138076
Advance Xitanium 503946 Dimmable Electronic Fixed Non-Programming Version 1 LED Driver, 347/480 VAC Input, 210 VAC Output, 150 W Power Rating, 8.3 in L x 2.32 in W
This product may be subject to ecological fees.
Damp, Dry Locations, Area, Roadway, Parking Garage, Floodlight and Outdoor Applications
BAA Compliant | CSA Certified | cULus Listed | FCC Title 47 Part 15 Class A | UL 879/1012/935

Advance Xitanium LED Driver, Dimmable Electronic Fixed Non-Programming Version 1, 347/480 VAC Input, 210 VAC Output, 150 W, 0.7 A, Power Factor: >0.95, 8.3 in Length, 2.32 in W, 1.48 in Height, -40 to 55 deg C

Long lasting and low maintenance, LED based light sources are an excellent solution for all lighting applications. For optimal performance, these solutions require reliable drivers matching the long lifetime of the LEDs. The Philips Advance Xitanium LED outdoor driver portfolio offers a range of products specially designed to operate LED solutions in outdoor applications. These drivers are designed for hard wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability.

Product Details

Advance Xitanium LED Driver, Dimmable Electronic Fixed Non-Programming Version 1, 347/480 VAC Input, 210 VAC Output, 150 W, 0.7 A, Power Factor: >0.95, 8.3 in Length, 2.32 in W, 1.48 in Height, -40 to 55 deg C

Long lasting and low maintenance, LED based light sources are an excellent solution for all lighting applications. For optimal performance, these solutions require reliable drivers matching the long lifetime of the LEDs. The Philips Advance Xitanium LED outdoor driver portfolio offers a range of products specially designed to operate LED solutions in outdoor applications. These drivers are designed for hard wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability.

Attributes

Amperage Rating: .7 A
Country Of Origin: Mexico
Height: 1.48 in
Input Voltage: 347/480 VAC
Length: 8.3 in
Output Voltage: 210 VAC
Power Factor: >0.95
Power Rating: 150 W
Temperature Rating: -40 to 55 deg C
Type: Dimmable Electronic Fixed Non-Programming Version 1
Width: 2.32 in

Features

  • New housing with high thermal capability
  • Enables long life luminaire designs
  • Allows luminaire designs for higher ambient temperatures

Resources

Catalog
Specification Sheet
