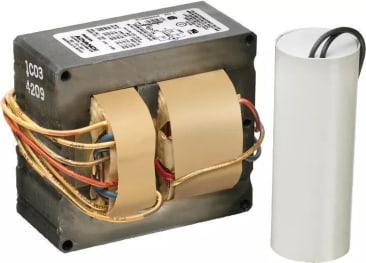

PHILIPS 485227 METAL HALIDE CORE & COIL BALLAST 400W M59 5-TAP KIT
MFR Part #: 485227
SKU #: 1117069
Brand: Signify | Advance
UPC: 781087110379
Advance 485227 Magnetic Core and Coil/CWA HID Ballast, HID Metal Halide Lamp, 400 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
RoHS Compliant | UL Recognized | CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Advance HID Ballast, Magnetic Core and Coil/CWA, HID Metal Halide Lamp, 400 W Lamp, 455 W Wattage, 120/208/240/277/480 VAC, 0.99/1.72/2.2/2.29/4.13 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, Ballast Factor: 1, ANSI M59 Ballast Grade, 4.75 in L x 4.45 in W x 4.25 in H Dimensions
Amperage Rating:
0.99/1.72/2.2/2.29/4.13 A
Ballast Factor:
1
Ballast Grade:
ANSI M59
Country Of Origin:
Mexico
Dimensions:
4.75 in L x 4.45 in W x 4.25 in H
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
HID Metal Halide
Lamp Wattage:
400 W
Minimum Starting Temperature:
-20 deg F
Number of Lamps:
1
Power Factor:
.9
Start Type:
Probe
Thermal Protection:
Class P
Type:
Magnetic Core and Coil/CWA
Voltage Rating:
120/208/240/277/480 VAC
Wattage:
455 W
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
Product Details
Advance HID Ballast, Magnetic Core and Coil/CWA, HID Metal Halide Lamp, 400 W Lamp, 455 W Wattage, 120/208/240/277/480 VAC, 0.99/1.72/2.2/2.29/4.13 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, Ballast Factor: 1, ANSI M59 Ballast Grade, 4.75 in L x 4.45 in W x 4.25 in H Dimensions
Attributes
Amperage Rating: 0.99/1.72/2.2/2.29/4.13 A
Ballast Factor: 1
Ballast Grade: ANSI M59
Country Of Origin: Mexico
Dimensions: 4.75 in L x 4.45 in W x 4.25 in H
Dimmable: No
Frequency Rating: 60 Hz
Lamp Type: HID Metal Halide
Lamp Wattage: 400 W
Minimum Starting Temperature: -20 deg F
Number of Lamps: 1
Power Factor: .9
Start Type: Probe
Thermal Protection: Class P
Type: Magnetic Core and Coil/CWA
Voltage Rating: 120/208/240/277/480 VAC
Wattage: 455 W
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
