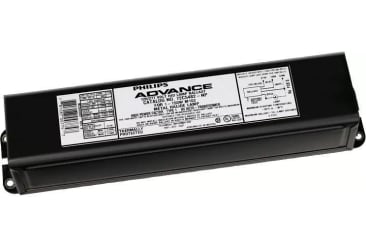

PHILIPS 494302 METAL HALIDE F-CAN BALLAST 250W M58 120/277V
MFR Part #:Â 494302
SKU #:Â 1117087
Brand:Â Signify | Advance
UPC:Â 781087025314
Advance 494302 F Can Magnetic CWA HID Ballast, HID Metal Halide Lamp, 250 W Lamp, 120/277 VAC, Probe, 1 Ballast Factor
This product may be subject to ecological fees.
Office, Schools, Retail Stores and Outdoor Applications
CSA Certified | RoHS Compliant | UL Listed
Product Details
Attributes
Features
Resources
Advance HID Ballast, F Can Magnetic CWA, HID Metal Halide Lamp, 250 W Lamp, 290 W Wattage, 120/277 VAC, 0.9/2.1 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M58 Ballast Grade, 90 deg C, Metal, 12 in L x 3.9 in W x 2.6 in H Dimensions
Amperage Rating:
0.9/2.1 A
Ballast Factor:
1
Ballast Grade:
ANSI M58
Country Of Origin:
Mexico
Dimensions:
12 in L x 3.9 in W x 2.6 in H
Frequency Rating:
60 Hz
Lamp Type:
HID Metal Halide
Lamp Wattage:
250 W
Material:
Metal
Minimum Starting Temperature:
-20 deg F
Number of Lamps:
1
Power Factor:
.9
Start Type:
Probe
Temperature Range:
90 deg C
Type:
F Can Magnetic CWA
Voltage Rating:
120/277 VAC
Wattage:
290 W
- The Philips Advance line of F-can HID ballasts comes in two dual voltage configurations 120/277 VAC for the US and 120/347 VAC Canadian market
- Ballasts for these luminaires are most often encased and potted in fluorescent ballast type cans
- Low noise for indoor use
- Utilizes UL class A (90 deg C) insulation
- Has built-in, automatically resetting, thermal protector which disconnects the ballast from power line in the event of overheating
- Thermally protected
- Ballast replacement kit with oil filled capacitor
Product Details
Advance HID Ballast, F Can Magnetic CWA, HID Metal Halide Lamp, 250 W Lamp, 290 W Wattage, 120/277 VAC, 0.9/2.1 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M58 Ballast Grade, 90 deg C, Metal, 12 in L x 3.9 in W x 2.6 in H Dimensions
Attributes
Amperage Rating:Â 0.9/2.1 A
Ballast Factor:Â 1
Ballast Grade:Â ANSI M58
Country Of Origin:Â Mexico
Dimensions:Â 12 in L x 3.9 in W x 2.6 in H
Frequency Rating:Â 60 Hz
Lamp Type:Â HID Metal Halide
Lamp Wattage:Â 250 W
Material:Â Metal
Minimum Starting Temperature:Â -20 deg F
Number of Lamps:Â 1
Power Factor:Â .9
Start Type:Â Probe
Temperature Range:Â 90 deg C
Type:Â F Can Magnetic CWA
Voltage Rating:Â 120/277 VAC
Wattage:Â 290 W
Features
- The Philips Advance line of F-can HID ballasts comes in two dual voltage configurations 120/277 VAC for the US and 120/347 VAC Canadian market
- Ballasts for these luminaires are most often encased and potted in fluorescent ballast type cans
- Low noise for indoor use
- Utilizes UL class A (90 deg C) insulation
- Has built-in, automatically resetting, thermal protector which disconnects the ballast from power line in the event of overheating
- Thermally protected
- Ballast replacement kit with oil filled capacitor
