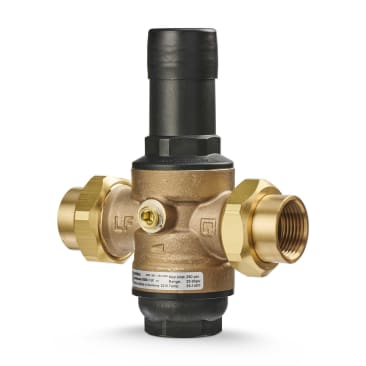

HONEYWELL DS06-100-DUT-LF/U DS06 1/2 NPT DOUBLE UNION LEAD FREE DIALSET PRESSURE REGULATING VALVE
Product Details
Attributes
Features
Resources
Resideo Braukmann No Lead Pressure Regulating Valve, Series: DS06, 1/2 in Nominal, FNPT, 250 psi, 140 deg F Operating, Media: Potable Water, Bronze Body, 5-53/64 in H x 4-7/8 in L, Import
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
- Built-In Dial-Set®- no gauge is needed to install or set static pressure
- Non-corroding unitized cartridge - contains all working parts and is easily replaceable
- Install it just about anywhere
- The internal and external threading allows for use in thread-by-thread, single union or double-union configurations
- 1/4 in NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- 25 to 90 psi outlet pressure adjustment range
- Calibrated adjustment dial
- 10:1 maximum reducing ratio
- Internal parts: Stainless steel and engineered plastics
- Regulator mechanism: Fabric-reinforced diaphragm
- Dial Calibration (+/-) 4 psi
Product Details
Resideo Braukmann No Lead Pressure Regulating Valve, Series: DS06, 1/2 in Nominal, FNPT, 250 psi, 140 deg F Operating, Media: Potable Water, Bronze Body, 5-53/64 in H x 4-7/8 in L, Import
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Attributes
Features
- Built-In Dial-Set®- no gauge is needed to install or set static pressure
- Non-corroding unitized cartridge - contains all working parts and is easily replaceable
- Install it just about anywhere
- The internal and external threading allows for use in thread-by-thread, single union or double-union configurations
- 1/4 in NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- 25 to 90 psi outlet pressure adjustment range
- Calibrated adjustment dial
- 10:1 maximum reducing ratio
- Internal parts: Stainless steel and engineered plastics
- Regulator mechanism: Fabric-reinforced diaphragm
- Dial Calibration (+/-) 4 psi
