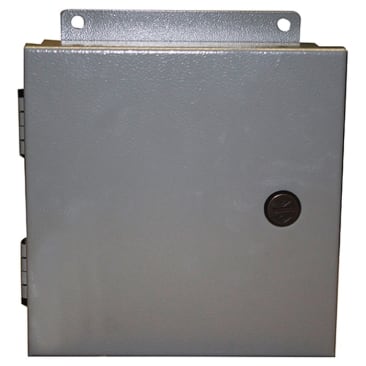

BEL S100806 10X8X6 NEMA 4/12 HINGED ENCLOSURE C/W BACKPAN
MFR Part #:Â S100806
SKU #:Â 1135862
Brand:Â BEL
UPC:Â 621691180705
BEL S100806 S Series 1-Door Enclosure, 8 in W x 6 in D x 10 in H, EEMAC/NEMA 4-12/IP65 NEMA Rating, 16 ga Steel
For indoor and outdoor housing of electrical, pneumatic or hydraulic instruments
ANSI/ASA61 | CSA 150359 | CE Certified | UL E109310
Product Details
Attributes
Features
Resources
BEL Enclosure, 1-Door, Series: S Series, 8 in Width, 6 in D, 10 in Height, EEMAC/NEMA 4-12/IP65, Hinged/Lift-Off Cover, 6-7/8 in W x 8-7/8 in H Panel, 16 ga Steel, Polyester Textured Powder Coated, Gray
Color:
Gray
Country Of Origin:
US
Cover Type:
Hinged/Lift-Off
Depth:
6 in
Finish:
Polyester Textured Powder Coated
Height:
10 in
Material:
16 ga Steel
NEMA Rating:
EEMAC/NEMA 4-12/IP65
Panel Size:
6-7/8 in W x 8-7/8 in H
Series:
S Series
Type:
1-Door
Width:
8 in
- Slip hinges enabling cover removal for easier access and mounting
- Seamless poured in place gasketed cover except, captive screw models with neoprene gasket
- Continuously welded and ground smooth seams
- 14 ga galvanized steel panel natural finish (unpainted), included with the enclosure
- 1/4 turn latch made of zamack
- Grounding screw on mounting panel
- Grounding studs welded on inner cover surface
- Some models come with captive screws (S040403, S040404, S060403 and S060404)
- ASP series (spare panel for all S series) made from unpainted galvanized steel
- All panels have four mounting holes
- Ground symbols and holes
Product Details
BEL Enclosure, 1-Door, Series: S Series, 8 in Width, 6 in D, 10 in Height, EEMAC/NEMA 4-12/IP65, Hinged/Lift-Off Cover, 6-7/8 in W x 8-7/8 in H Panel, 16 ga Steel, Polyester Textured Powder Coated, Gray
Attributes
Color:Â Gray
Country Of Origin:Â US
Cover Type:Â Hinged/Lift-Off
Depth:Â 6 in
Finish:Â Polyester Textured Powder Coated
Height:Â 10 in
Material:Â 16 ga Steel
NEMA Rating:Â EEMAC/NEMA 4-12/IP65
Panel Size:Â 6-7/8 in W x 8-7/8 in H
Series:Â S Series
Type:Â 1-Door
Width:Â 8 in
Features
- Slip hinges enabling cover removal for easier access and mounting
- Seamless poured in place gasketed cover except, captive screw models with neoprene gasket
- Continuously welded and ground smooth seams
- 14 ga galvanized steel panel natural finish (unpainted), included with the enclosure
- 1/4 turn latch made of zamack
- Grounding screw on mounting panel
- Grounding studs welded on inner cover surface
- Some models come with captive screws (S040403, S040404, S060403 and S060404)
- ASP series (spare panel for all S series) made from unpainted galvanized steel
- All panels have four mounting holes
- Ground symbols and holes
