RECTORSEAL 83909 ASPEN 100-250V MINI ORANGE UNIVERSAL PUMP
MFR Part #:Â 83909
SKU #:Â 1267155
Brand:Â RectorSeal | Aspen Pumps
UPC:Â 21449839099
Aspen® 83909 Mini-Split Condensate Pump Kit, 2.9 to 3.2 gph Flow Rate, 33 ft Shutoff Head, 16 W Power Rating

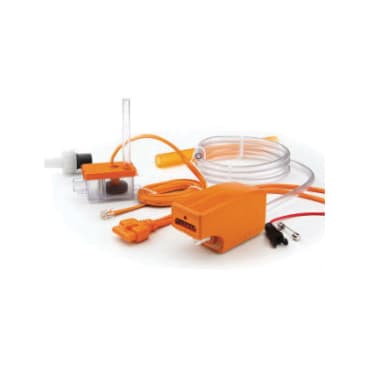

Pump Assembly, In-Line Reservoir, Submersible Reservoir, 5 ft x 1/4 in ID Vinyl Discharge Tube, Modular 6 ft Power Cable, 6 x 1/4 in id Vinyl Breather Tube Drain Hose Adaptor, Inline Fuse, (6) Cable Ties, (2) Self-Adhesive VELCRO® Strips, 8 x 5/8 in id Inlet Tube, Installation Manual, (1) Anti-Siphon and 90 deg Elbow
Product Details
Attributes
Features
Resources
Aspen® Condensate Pump Kit, Mini-Split, 2.9 to 3.2 gph, 33 ft Shutoff Head, 16 W, 0.17 A 100 to 230 VAC, Pan Mount, 26 dBA, 140 deg F, Orange, 4-1/4 in L x 1-1/2 in W x 2 in H
Color:
Orange
Country Of Origin:
Great Britain
Dimensions:
4-1/4 in L x 1-1/2 in W x 2 in H
Electrical Ratings:
0.17 A 100 to 230 VAC
Flow Rate:
2.9 to 3.2 gph
Mounting Type:
Pan
Power Rating:
16 W
Shutoff Head:
33 ft
Sound Level:
26 dBA
Temperature Rating:
140 deg F
Type:
Mini-Split
- Self-priming
- Pump installs remotely above ceiling or inside lineset cover
- Modular terminals for fast connection
- Gravity inlet
- Fully potted electronics
- 3 A NC dry contacts rated at 5 A inductive at 230 VAC
- 49500 Btu capacity
- 5 ft sound maximum suction lift
- 3 A NC dry contact rating
- 6 in L cable
Product Details
Aspen® Condensate Pump Kit, Mini-Split, 2.9 to 3.2 gph, 33 ft Shutoff Head, 16 W, 0.17 A 100 to 230 VAC, Pan Mount, 26 dBA, 140 deg F, Orange, 4-1/4 in L x 1-1/2 in W x 2 in H
Attributes
Color:Â Orange
Country Of Origin:Â Great Britain
Dimensions:Â 4-1/4 in L x 1-1/2 in W x 2 in H
Electrical Ratings:Â 0.17 A 100 to 230 VAC
Flow Rate:Â 2.9 to 3.2 gph
Mounting Type:Â Pan
Power Rating:Â 16 W
Shutoff Head:Â 33 ft
Sound Level:Â 26 dBA
Temperature Rating:Â 140 deg F
Type:Â Mini-Split
Features
- Self-priming
- Pump installs remotely above ceiling or inside lineset cover
- Modular terminals for fast connection
- Gravity inlet
- Fully potted electronics
- 3 A NC dry contacts rated at 5 A inductive at 230 VAC
- 49500 Btu capacity
- 5 ft sound maximum suction lift
- 3 A NC dry contact rating
- 6 in L cable
