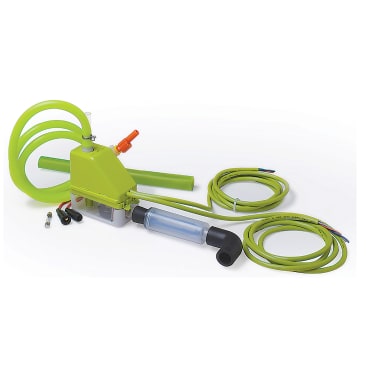

Aspen® Condensate Pump Kit, OEM Mini Lime, 2.9 to 3.2 gph, 16 W, 100 to 230 VAC, 25.5 dB, 104 deg F, 3-3/4 in L x 1-5/8 in W x 3-1/8 in H
Mini Lime Pumps are designed with both the pump and reservoir as one integral unit, sharing a common body. No connecting tubes or wires are needed. The pumps clip directly onto the reservoir for minimal suction lift. Lineset cover is included.
- Left or right install
- Easily accessed for filter cleaning
- Quiet and fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent No 6,817,194)
- 3 A NO-NC dry contacts rated at 5 A inductive at 230 VAC
- Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment
- Pump assembly mounts outside evaporator and is clipped directly onto the reservoir for minimal suction lift, behind easy to remove elbow cover, transparent reservoir clips off pump for easy filter maintenance access
- Model - ASPMLOEMUNI
