RECTORSEAL 83930 Image 1

RECTORSEAL 83930 SILENT+ MINI WHITE PUMP

MFR Part #: 83930
SKU #: 1267156
Brand: RectorSeal | Aspen Pumps
UPC: 21449839303
Aspen® 83930 Silent Plus Mini Pump, 6 gph Flow Rate, 5/8 to 1 in OD Inlet x 1/4 in OD Outlet, 33 ft Shutoff Head, 2.1 W Power Rating

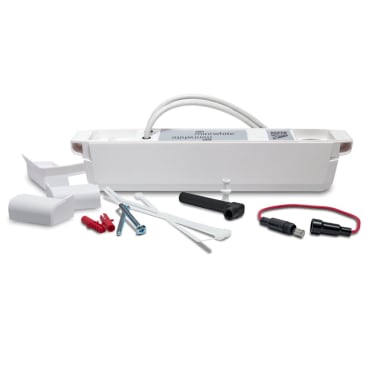

Pump assembly, Cover Plate, (2) Screw hole covers, (3) Zip tie 5.5 inch x 1/8 inch, (2) Screws, (2) Wall Anchors, Male to Male Adaptor (outlet to tubing), 90 Degree Outlet Pipe Connector, Inline Fuse, Install Template, Install Manual
The quick fit Silent+ Mini White condensate pump is designed to be fitted beneath high wall indoor units and offers flexible installation with easy access for future maintenance
CSAus Certified

Aspen®, 83930, Pump, Silent Plus Mini, 6 gph Flow Rate, 5/8 to 1 in OD Inlet, 1/4 in OD Outlet, 33 ft Shutoff Head, 2.1 W Power, 0.18 A 100 to 250 VAC Electrical Rating, 19 dBA Sound Level, 104 deg F, White, 2.6 in H x 1.9 in W x 11.5 in L Dimensions

The Silent+ ultra slim pumps is designed to mount discreetly. in the shadow line. below a high wall unit. The pump speed adjusts with the flow rate to provide quiet operation and optimum performance.

Product Details

Aspen®, 83930, Pump, Silent Plus Mini, 6 gph Flow Rate, 5/8 to 1 in OD Inlet, 1/4 in OD Outlet, 33 ft Shutoff Head, 2.1 W Power, 0.18 A 100 to 250 VAC Electrical Rating, 19 dBA Sound Level, 104 deg F, White, 2.6 in H x 1.9 in W x 11.5 in L Dimensions

The Silent+ ultra slim pumps is designed to mount discreetly. in the shadow line. below a high wall unit. The pump speed adjusts with the flow rate to provide quiet operation and optimum performance.

Attributes

Color: White
Dimensions: 2.6 in H x 1.9 in W x 11.5 in L
Electrical Ratings: 0.18 A 100 to 250 VAC
Flow Rate: 6 gph
Inlet Size: 5/8 to 1 in OD
Outlet Size: 1/4 in OD
Power Rating: 2.1 W
Shutoff Head: 33 ft
Sound Level: 19 dBA
Temperature Rating: 104 deg F
Type: Silent Plus Mini

Features

  • Ultra quiet operation
  • Low profile design allows installation above a door
  • Reversible position on the left or right for installation flexibility
  • Capacitance technology for soft start and variable flow rate
  • 5A volt-free high level safety wires, NC/NO contacts rated at 5A inductive at 230V AC

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
