ACE 3S-600-72-3W SPLITER
MFR Part #: 3S-600-72-3W
SKU #: 1193309
Brand: ACE
UPC: 400009097542

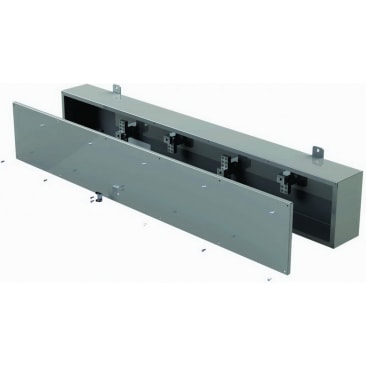

ACE 3S-600-72-3W Weather-Proof Splitter Trough With Padlock, 72 in W, 12 in H, 7 in D, 600 A, 600 V, NEMA 3R, Steel
Product Details
Attributes
Features
Resources
ACE Weather-Proof Splitter Trough, 600 V, 600 A, Screw-On Cover, 14 to 3/0 AWG, 4 AWG to 600 kcmil, 6 to 4/0 AWG Wire, NEMA 3R, Wall Mount, Steel, Powder-Coated, Gray, 72 in Width, 12 in Height, 7 in D
Amperage Rating:
600 A
Color:
Gray
Cover Type:
Screw-On
Depth:
7 in
Finish:
Powder-Coated
Height:
12 in
Material:
Steel
Mounting Type:
Wall
NEMA Rating:
NEMA 3R
Voltage Rating:
600 V
Width:
72 in
Wire Size:
14 to 3/0 AWG, 4 AWG to 600 kcmil, 6 to 4/0 AWG
- Screw on lift-off cover comes with padlock provision
- Cu/Al lugs with main and 6x secondary's
- Designed for horizontal wall mounting
- Ground lug type A
Product Details
ACE Weather-Proof Splitter Trough, 600 V, 600 A, Screw-On Cover, 14 to 3/0 AWG, 4 AWG to 600 kcmil, 6 to 4/0 AWG Wire, NEMA 3R, Wall Mount, Steel, Powder-Coated, Gray, 72 in Width, 12 in Height, 7 in D
Attributes
Amperage Rating: 600 A
Color: Gray
Cover Type: Screw-On
Depth: 7 in
Finish: Powder-Coated
Height: 12 in
Material: Steel
Mounting Type: Wall
NEMA Rating: NEMA 3R
Voltage Rating: 600 V
Width: 72 in
Wire Size: 14 to 3/0 AWG, 4 AWG to 600 kcmil, 6 to 4/0 AWG
Features
- Screw on lift-off cover comes with padlock provision
- Cu/Al lugs with main and 6x secondary's
- Designed for horizontal wall mounting
- Ground lug type A
