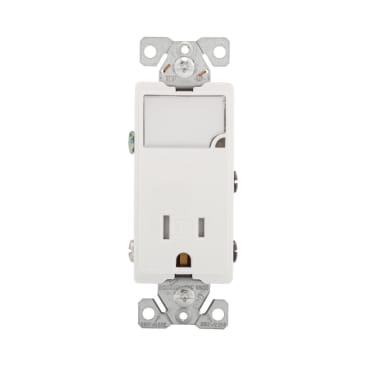

EAGLE TR7735W RECP/NIGHTLIGHT COMBO 15A 125V TR WH
MFR Part #:Â TR7735W-BOX
SKU #:Â 1155972
Brand:Â Cooper Wiring Devices
UPC:Â 032664727689
Cooper Wiring Devices TR7735W-BOX Combination Night Light With Receptacle, 120/277 VAC, 15 A, 1 W
For residential
cULus Listed | UL1472 File No. E47967
Product Details
Attributes
Features
Resources
Cooper Wiring Devices Combination Night Light, 120/277 VAC, 15 A, 1 W, 2 Pole, 3 Wires, NEMA 5-15R, 14 to 12 AWG Conductor, Flush Mount, Back Wired, Side Wired Terminal, Thermoplastic PVC Housing, Thermoplastic Top, PVC Base, Brass Contact, Steel Screw, White, -4 to 140 deg F, 4-1/4 in Height, 2 in Width, 2 in D
Amperage Rating:
15 A
Number of Poles:
2
Voltage Rating:
120/277 VAC
Base Material:
PVC
Color:
White
Conductor Size:
14 to 12 AWG
Contact Material:
Brass
Depth:
2 in
Enclosure Type:
NEMA 5-15R
Height:
4-1/4 in
Housing Material:
Thermoplastic PVC
Mounting Type:
Flush
Number of Wires:
3
Power Rating:
1 W
Screw Material:
Steel
Temperature Rating:
-4 to 140 deg F
Terminal Type:
Back Wired, Side Wired
Top Material:
Thermoplastic
Width:
2 in
- Nightlight is dimmable to desired setting
- Nightlight is controlled by a photo sensor that turns on in the dark, off in light
- Easily disable photo sensor for high/medium/low/off settings
- Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper -resistant (TR7735 and TR7736)
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion-resistance
- Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use
- Convenient built-in wire strippers speed installation
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG
- Triple wipe blade contacts and double wipe ground contacts to ensure long term plug retention (TR7735 and TR7736)
- Tri-combo screw heads offer greater installation flexibility
