CODE PAD-WP-A-3624 36IN SPLITTER 225A 4W 600V 3R ALUM
MFR Part #:Â PAD-WP-A-3624
SKU #:Â 1246812
Brand:Â CODE
UPC:Â 623825005793

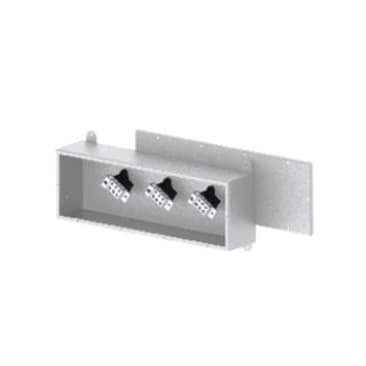

CODE PAD-WP-A-3624 Splitter Trough, 8 in W, 36 in H, 5 in D, 225 A, 600 V, Aluminum
CSA Certified
Product Details
Attributes
Features
Resources
CODE Splitter Trough, 600 V, 225 A, Aluminum, 8 in Width, 36 in Height, 5 in D, Additional Information: (1) 6 AWG to 300 kcmil Main Lugs, (6) 14 to 2/0 AWG Branch Lugs
The PAD-WP-A splitter troughs are designed for 600 V (max) service, three or four wires.
Height:
36 in
Material:
Aluminum
Width:
8 in
Additional Information:
(1) 6 AWG to 300 kcmil Main Lugs, (6) 14 to 2/0 AWG Branch Lugs
Amperage Rating:
225 A
Depth:
5 in
Voltage Rating:
600 V
- 10 ga or 12 ga aluminum
- Neoprene gasket
- Screw cover
- Factory installed PADs
Product Details
CODE Splitter Trough, 600 V, 225 A, Aluminum, 8 in Width, 36 in Height, 5 in D, Additional Information: (1) 6 AWG to 300 kcmil Main Lugs, (6) 14 to 2/0 AWG Branch Lugs
The PAD-WP-A splitter troughs are designed for 600 V (max) service, three or four wires.
Attributes
Height:Â 36 in
Material:Â Aluminum
Width:Â 8 in
Additional Information:Â (1) 6 AWG to 300 kcmil Main Lugs, (6) 14 to 2/0 AWG Branch Lugs
Amperage Rating:Â 225 A
Depth:Â 5 in
Voltage Rating:Â 600 V
Features
- 10 ga or 12 ga aluminum
- Neoprene gasket
- Screw cover
- Factory installed PADs
