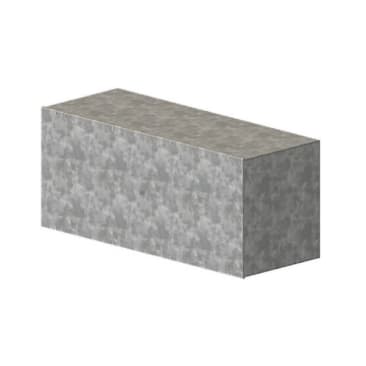

CODE CT-G-421816 Image 1
CODE CT-G-421816 Image 2
content loaded
CODE CT-G-421816 Image 1

CODE CT-G-421816 42X18X16 CT CABINET GALV INDR SCRW CVR

MFR Part #: CT-G-421816
SKU #: 1135571
Brand: CODE
UPC: 623825004345
CODE CT Series CT-G-421816 Current Transformer Cabinet, 18 in W, 42 in H, 16 in D, 800 A, Steel, Wall Mounting
Sealing Screw, Screw Cover, Back Panel, (4) Internal-Mounting Holes, Grounding Provisions
For indoor
CSA Type 1 Certified | UL Listed

CODE Current Transformer Cabinet, Series: CT Series, 800 A, Wall Mount, Steel, Galvanized, Gray, 18 in Width, 42 in Height, 16 in D

CT cabinets are used with instrument-rated meters, to meter 1 ph services greater than 400 A (320 A continuous) and 3 ph services greater than 200 A. Boxes are manufactured from 10 ga aluminum or 14 - 16 ga pre-galvanized steel. The enclosures are complete with screw cover, back panel and sealing screws. Four internal mounting holes and grounding provisions are included.

Product Details

CODE Current Transformer Cabinet, Series: CT Series, 800 A, Wall Mount, Steel, Galvanized, Gray, 18 in Width, 42 in Height, 16 in D

CT cabinets are used with instrument-rated meters, to meter 1 ph services greater than 400 A (320 A continuous) and 3 ph services greater than 200 A. Boxes are manufactured from 10 ga aluminum or 14 - 16 ga pre-galvanized steel. The enclosures are complete with screw cover, back panel and sealing screws. Four internal mounting holes and grounding provisions are included.

Attributes

Amperage Rating: 800 A
Color: Gray
Depth: 16 in
Finish: Galvanized
Height: 42 in
Material: Steel
Mounting Type: Wall
Series: CT Series
Width: 18 in

Features

  • Certified by BC hydro

Resources

Catalog
Line Drawing
Specification Sheet
