ALLIED 54 MSE SUPER HOT 54KW ELECTRIC BOILER (54BT)
Product Details
Attributes
Features
Resources
Super Hot® Electric Boiler, 208/240/480/600 VAC, 260/225/150/130/64.9/51.9 A, 54 kW Power, Phase: 1, 3 ph, 184248 Btu/hr, 6.6 gal Capacity, 37.5 gpm Flow Rate, 90 psi, Connection Type: NPT, 1-1/4 x 3/4 in Connection, 1-1/4 in Pipe, Wall Mounting, 210 deg F, 18 in W x 12 in H

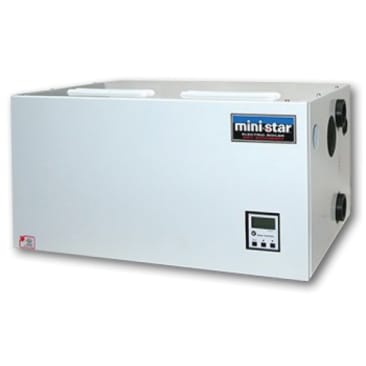

The Mini-Star electric boiler offers exceptional comfort and performance in a complete range of sizes to handle any of your hydronic heating needs. Using clean and convenient electric heat, the Mini-Star achieves a fuel utilization efficiency even greater than that of a condensing boiler while at the same time saving the need to install gas supply piping and venting. It is the perfect solution to escalating gas prices.
- Advanced BC-1 controller with outdoor reset customizes to any application
- Pre-wired and clearly labeled terminal blocks for quick wiring setup
- Quiet and reliable contactors
- Compact and lightweight for an easy install
- Every boiler pressure tested for quality assurance
- Designed to ASME code section IV for a maximum pressure of 90 psi
- Powered contacts for 24 V alarm and 120 V pump flow switch terminals
- Flange elements
- Dual high limit shut down
- 50 VA transformer
- Failed contactor safety circuit offers back up protection to shut down a runaway boiler even if a contactor fails
- Factory wired for quick install and easy access to the control panel for service
- 3-stage phased in power draw reduces surges and automatically adjusts heat output to match heating load
- PID logic (proportional, integral, derivative) controller determines optimum time delays and inter-stage differentials to eliminate temperature swings, optimize cycle time and reduce component wear
- User programmable reset curve automatically adjusts for seasonal changes in heat load
- Warm weather shut down (WWSD) for outdoor reset applications shuts off boiler during periods of warmer weather
- LCD screen displays
- Exercising of pump during periods of no operation
- Built-in test routine for checking control outputs
